Manifold is only slotted on at the moment, the bolts arent done up on it just incase :)

All the hoses are now sorted and i know exactly what goes where :) i figured out which of those heater matrix ones go where and the hoses for those are identical to the 1.0 ones i currently have so no need for change :)

nice project..

Looks clean & tidy, good stuff!!
havent read every page and havent seen what management your planning on running with the new cams etc?
or you just remapping the original ecu?

KMS ecu ill be using with the engine, wideband and display too :)

Very smart Matt. I really like them Samco hoses too. Did they sort u out in the end?

Induction hose is a Samco one. They failed to come up with the goods for the coolant hoses, they make them for the VTR but not for the VTS (wtf?) and for a 1 off they said it wouldnt be cost effective to them

so

The coolant ones are from SFS another company that are widely recommended.

Looking at the both of them the SFS ones look of better quality,

Monday 28th January

Started on the loom today (oh the joy) basically it was covered in crap and oil, some of the plugs looked a bit iffy and it basically needed a good check over.

Now this is where i could use some help from any VTS owners out there if you have some spare time

Alot of the plugs i labelled up where they went before dismantling the engine, others though werent connected so ive got no idea where they go.

Heres the pics of the remaining plugs

Following from the main plug that joins the engine loom to the rest of the car loom at the front passenger side of the engine bay this plug is a few branches up from that



These are in the same area as the last one

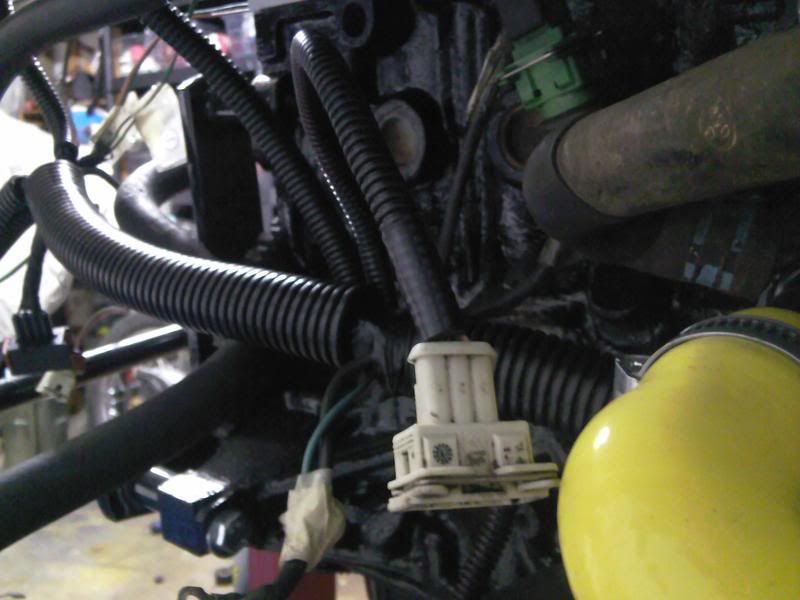

3 plugs and a random green wire here? any clues





This white one is at the back of the engine



This is my temperature sensor plug, it looks absolutely shagged as the securing it was snapped off on the engines transit to me. How bad is this? Im guessing there should also be 2 metal prongs however there is only 1 internal pink wire that goes to the metal prong that you see there

How can i fix it?

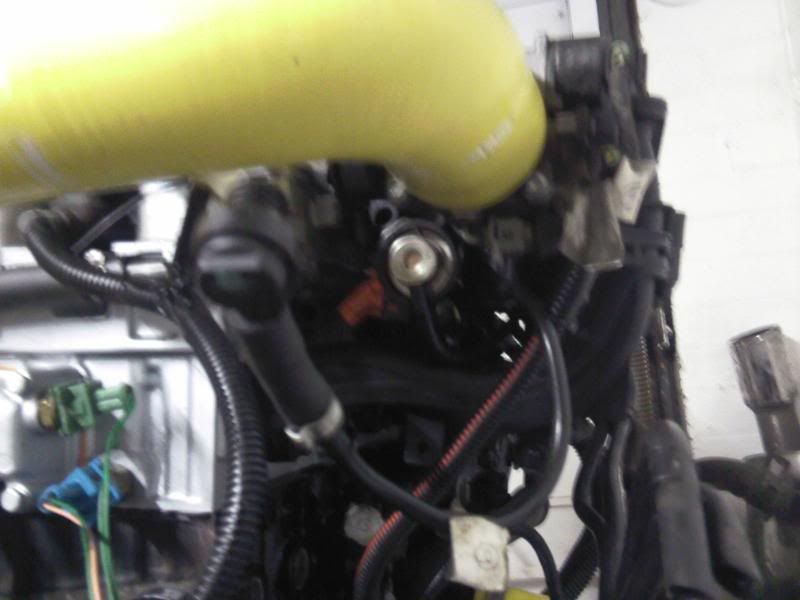

This little pipe comes out of the inlet manifold just behind the throttle body, but where does this end attach to?

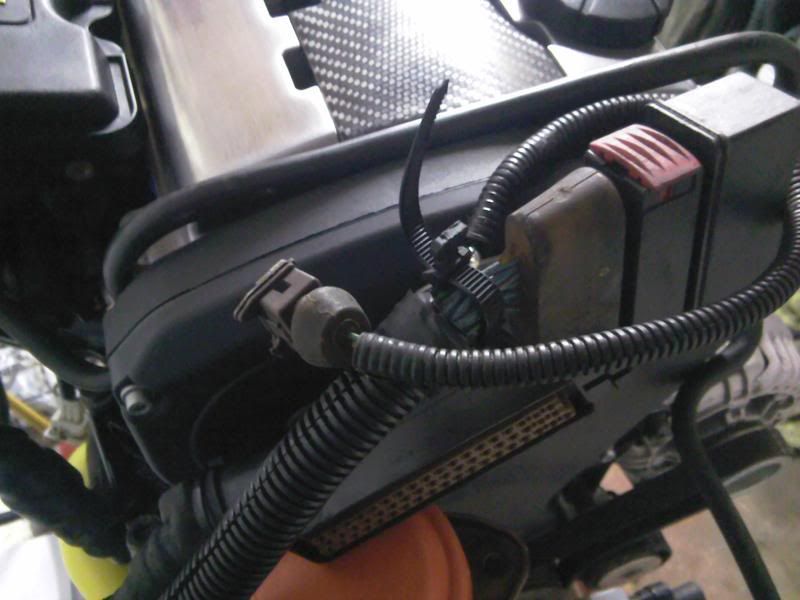

This brown plug here is very close to the ECU's large plug



Also the back of my fan unit looks like this, with no plug or anything so where do these 2 wires actually go?

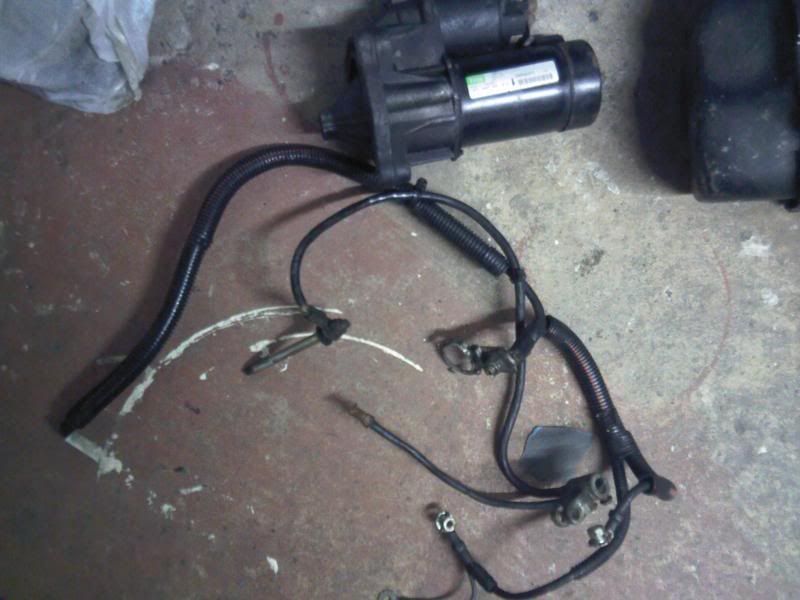

Does anybody know if the starter motor and the mini loom that attaches it to the battery are universal? can i just use my original bits for this?




Thats about all i can think of now lol. Any help will be much appreciated

Top picture - radiator fan ??

Three plugs and green wire - i think the connector with the red slider bit in it attatch's to the lambda sensor - don't know if you need it with kms etc. ?

Temperature sensor - could you just cut the sensor off your old loom, then solder it onto this loom, the wire's should be the same??

Pipe from inlet manifold - I think this is for the brake sevo - so just attatched next to the master cylinder

Brown Plug by ECU - This one goes up into the wing and attatches to some little canister thing.

Cut wires on radiator fan - I think these are some sort of front headlight relays iirc - I'm going to see what happens when I try to plug in vts loom, hopefully won't need these as car should already had headlight relays somewhere.

I think the starter motor is universal as such, I plan on just using my old one for mine, I can't see why they'd be different.


These are just my thoughts whilst looking at the pictures, I might be wrong with some but should give you an idea.

pop over and have a look at mine man ur allways welcome

Thanks for both of the above replies :) muchos gracias & rep left

Have to say i had never thought of swapping the temp sensor plug over from my existing loom :)

Pic 1 - Unsure?
Pic 2 - Goes to fusebox in engine bay, should be a slidder underneath.

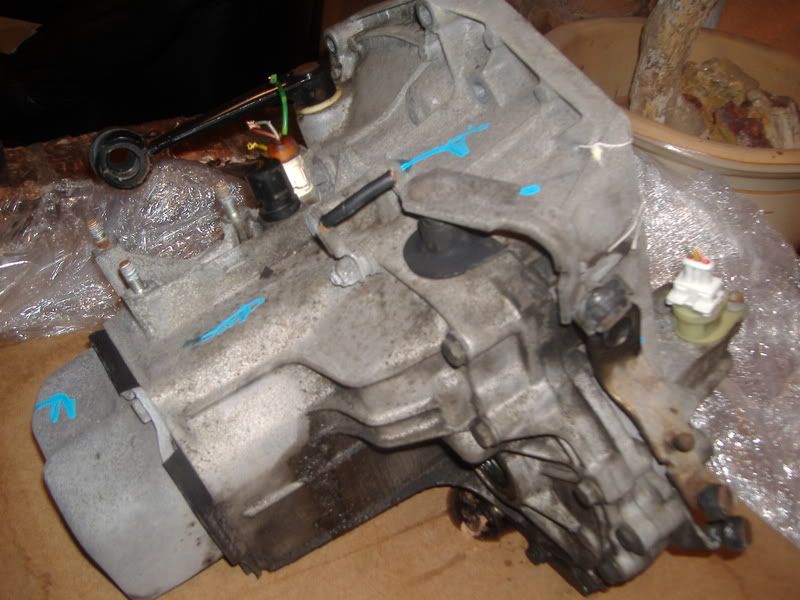

Pic 3 - Lambda Sensor, throttle body heater and crank sensor plug. unsure of green wire.
Pic 5 - Vehicle speed sensor plug. Attaches to top of gearbox
Pic 7 - Brake servo take off pipe to master cylinder.
Pic 8 - Osf arch, purge valve solenoid.

Hope this helps. Ps if you want a vts wiring diagram give me a shout. still got some info from when i was doing my vts loom to megasquirt ecu.

Ste

think everythings been answered mate, as said your always welcome to go and look at mine but its not easy as my bays full of shit, and i dont have standard tb which doesnt really halp in your case :y:

Thanks again for the help so far :)

Only bits left to solve now is that random green wire thats floating about and what to do with the wires on the back of the fans :)

could that green wire be an earth?? That just attatches to the top of the gearbox ?? Is the only real logical place for it due to it's length and it's thickness ??

I think that i where the green one goes.

My vts box.


Sure the green one earth. Will have a look on my old one tomoz if you want

Thatll be ace if you can have a check for me Sean, does look a very familiar green one on your gearbox in that pic :)

I think the green one bolts onto the front off the gearbox. It might be the same on your motor mate

Any numbers on them? you'll need to look hard.

Then cross reference the numbers with haynes

Hopefully the haynes manual will be a bit more useful these coming weeks.

Lately everytime i open the book for something i get "this area is not deemed suitable for diy-ists and help should be sought from trained professionals"

i thinkyou should put your tongue on the wire when you get the engine in matt, see if its a live :p

Wednesday 30th January

The final countdown of 1.0 power has begun.

The Saxo is going into the garage tomorrow afternoon where the final battle against the French begins :y:

A small journey to work and then a few mile journey to its resting place are the last trips. Its done well and to be fair its been very reliable throughout its 100,900 miles.

Anyway assuming all goes well its onwards and upwards.

Keep your eyes out for the juicy updates on the Transplant itself
