PAS, Heater fan , Rear demister Repair, with picture big guide in detail

[boarer2004]

Right finally fixed my problem, as I no some guys down the citroen garage and they told me what to do if I didn’t have the money to get a new barrel.

If after this guide you still dont want to try this i dont mind doing it if you live near me for a small fee and i can buy all the bits you need doesn take long at all.

Ok if all three of the above have stopped working this is what you do.

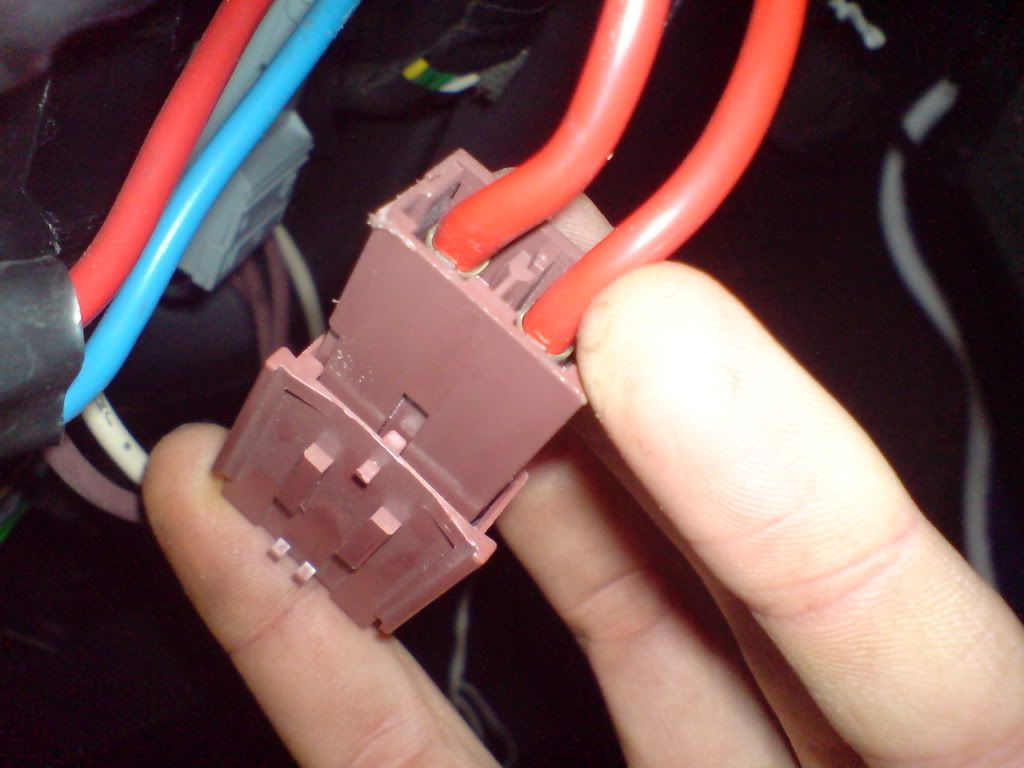

Remove the steering column cover (held on by two torx) and under the steering column is a light brown plastic connector with 2 red wires going in the right side and two brown wires coming out the left side.







Unplug the connector cut the two red wires (3/4 inches above connector) and remove as shown in the picture below.

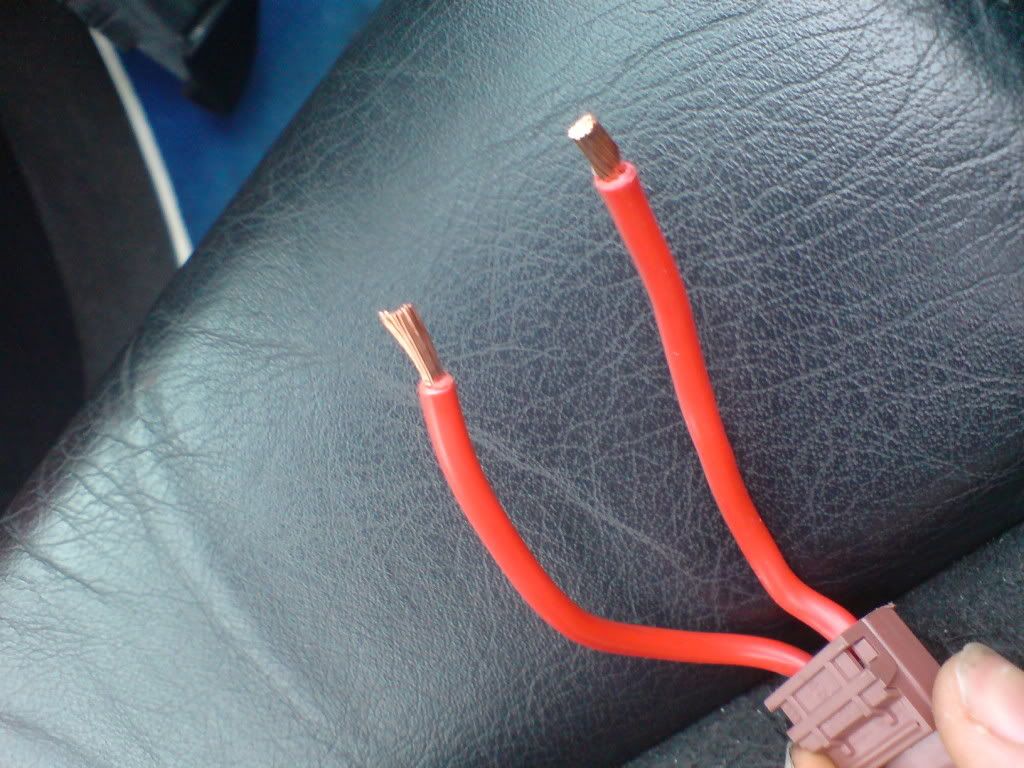

Then you will have to strip the wirers back about a 1-cm / 10mm again shown in picture below.

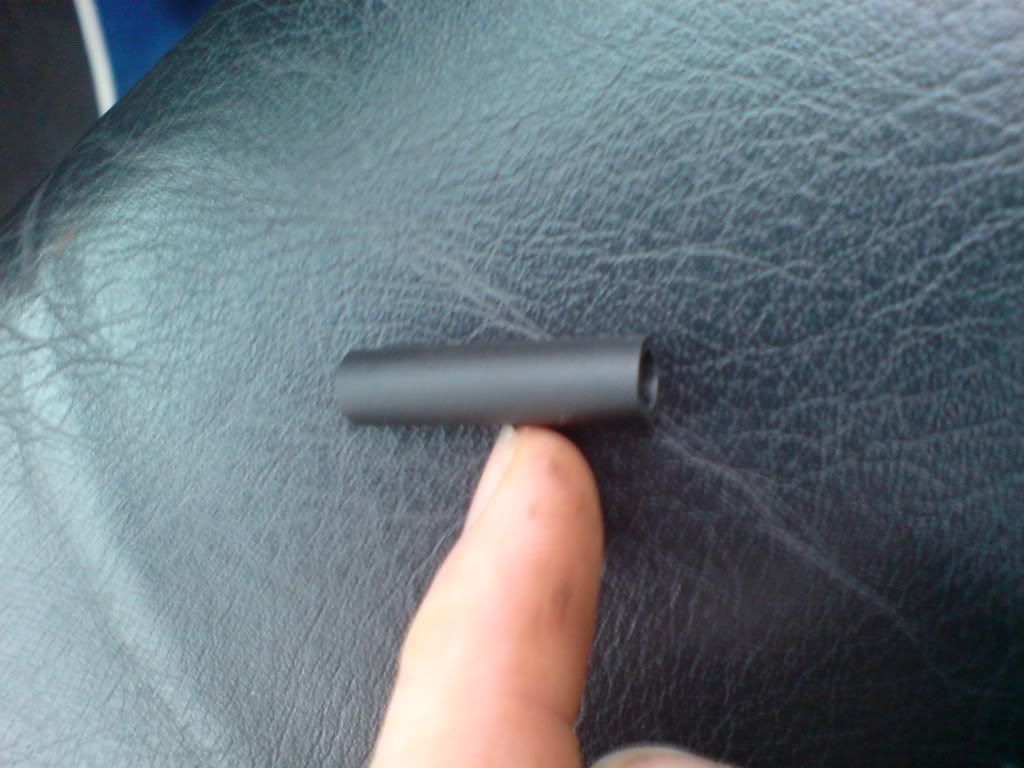

Then you will need to buy this connector don’t know the term or name for this but has a rubber outer and a metal inner it needs to be big enough to host wire thickness (see picture below)

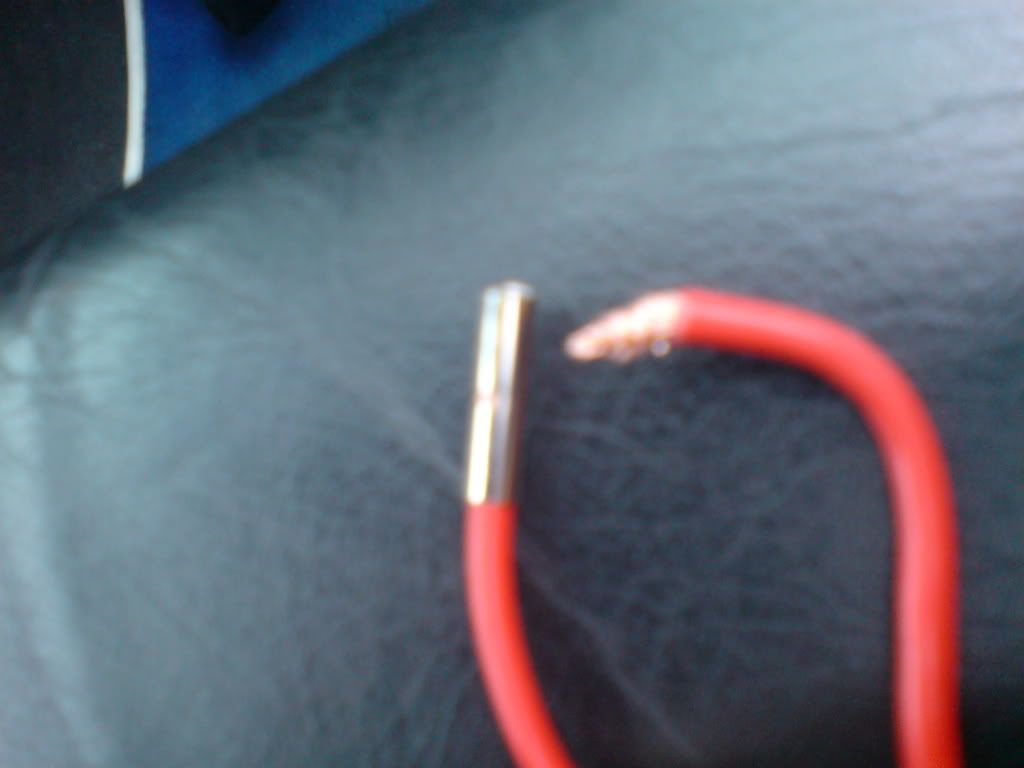

Take rubber part off then slide metal piece over one side of wire see picture below

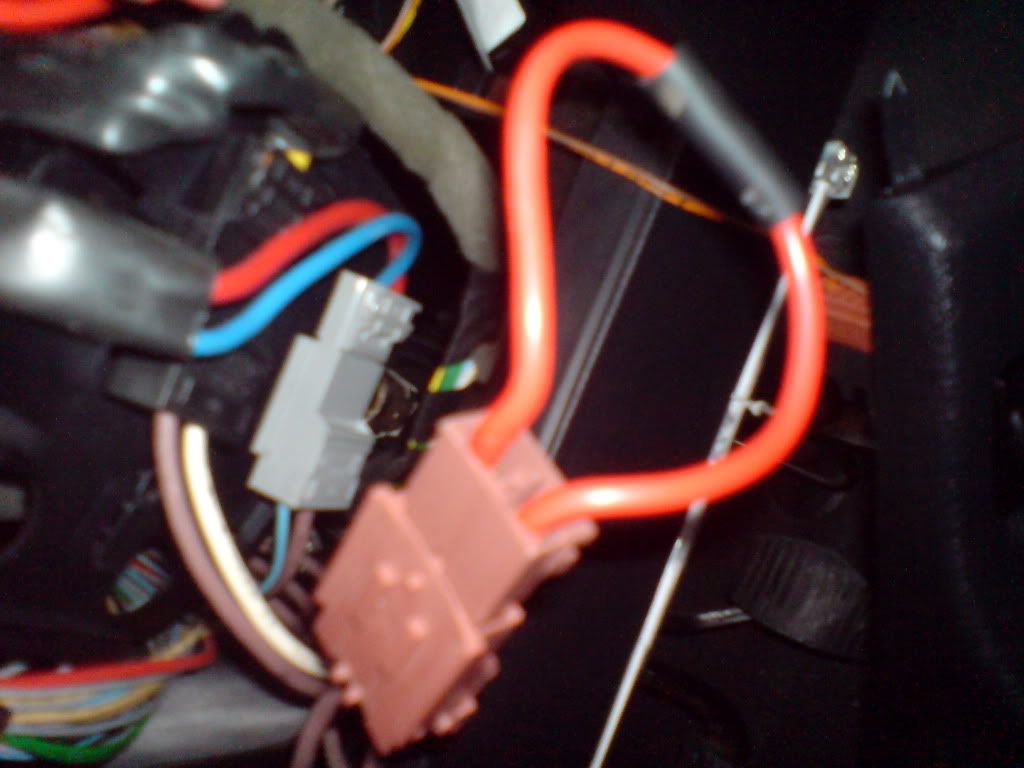

Then put rubber over other end and connect together again shown below ☺





Then simply plug back in and enjoy your new car

[andiz]

nice guide is this a common problem in winter for saxos as i had to do mine a couple of days ago

[boarer2004]

Originally Posted by andiz

nice guide is this a common problem in winter for saxos as i had to do mine a couple of days ago

yes very very very common near enough everyone i no with a saxo has had this problem but bet your glad now you have heating ive been dressing up like im going sking every day because i have leather seats aswell makes it twice as bad thanks for reading cheers sam (boarer2004)

[tomsmith5]

Good guide mate ...
had to do this a few weeks back...so much better than getting a new barrel in my opinion

[boarer2004]

Originally Posted by tomsmith5

Good guide mate ...
had to do this a few weeks back...so much better than getting a new barrel in my opinion

yeah and just abit cheaper too i saw another guide on here but was quite short and not alot of picture so hope this help people out

[andiz]

citroen should of just done this in the first place ow well sorted now thanks sam pics are better in this guide

[Geb]

First class guide,many thanks.

[bigbazvrt]

oh yeah to right just did it now but i used 2 large female spades and wire now everything works a treat so many thanx

[boarer2004]

Originally Posted by Geb

First class guide,many thanks.

cheers

[Mochachino]

You could do with linked this thread into the guide that already exists for this as the other ones more popular but the pictures have expired. You get more hits then.

[boarer2004]

Originally Posted by bigbazvrt

oh yeah to right just did it now but i used 2 large female spades and wire now everything works a treat so many thanx

well just as long good connection as alot of current runs through there ...... no probs i like to help people out

[jamievtr1989]

Originally Posted by andiz

nice guide is this a common problem in winter for saxos as i had to do mine a couple of days ago

ok tht sound good wheir do u stay??thanks

[jamievtr1989]

Originally Posted by boarer2004

Right finally fixed my problem, as I no some guys down the citroen garage and they told me what to do if I didn’t have the money to get a new barrel.

If after this guide you still dont want to try this i dont mind doing it if you live near me for a small fee and i can buy all the bits you need doesn take long at all.

Ok if all three of the above have stopped working this is what you do.

Remove the steering column cover (held on by two torx) and under the steering column is a light brown plastic connector with 2 red wires going in the right side and two brown wires coming out the left side.







Unplug the connector cut the two red wires (3/4 inches above connector) and remove as shown in the picture below.






Then you will have to strip the wirers back about a 1-cm / 10mm again shown in picture below.







Then you will need to buy this connector don’t know the term or name for this but has a rubber outer and a metal inner it needs to be big enough to host wire thickness (see picture below)





Take rubber part off then slide metal piece over one side of wire see picture below





Then put rubber over other end and connect together again shown below ☺





Then simply plug back in and enjoy your new car

yea that sounds good wheir are u about thanks mate

[wardy123]

awesome nice one mate!!

[-shuggles-]

anybody know the name of that black connector? need to do this hate going to work wrapped up like a burst hose

[TeleTor1]

Just back from the iceold garage, but now the fan and power steering works Thanks :-)

[boarer2004]

Originally Posted by -shuggles-

anybody know the name of that black connector? need to do this hate going to work wrapped up like a burst hose

its on the demon tweaks website

[MikeYost]

just did this, worked a treat. Thanks a lot.

Quick question, is normal insulation tape ok to connect the wires? I dont have any connectors and its all ive got

[boarer2004]

Originally Posted by MikeYost

just did this, worked a treat. Thanks a lot.

Quick question, is normal insulation tape ok to connect the wires? I dont have any connectors and its all ive got

go get the connectors asap buddy cost nothing you dont want a fire under your dash because you couldnt get some connectors cost you £2.00 max to do this easy fix

[MikeYost]

Alright will do it asap.. wheres the best place to get one? whats it called as i have no idea
