Gauges progress thread
I thought I would make a thread showing my gauge fitting tips/techniques/problems! First of all I am mounting my guages in the DIN slot, using one of these:
Which is yet to arrive....

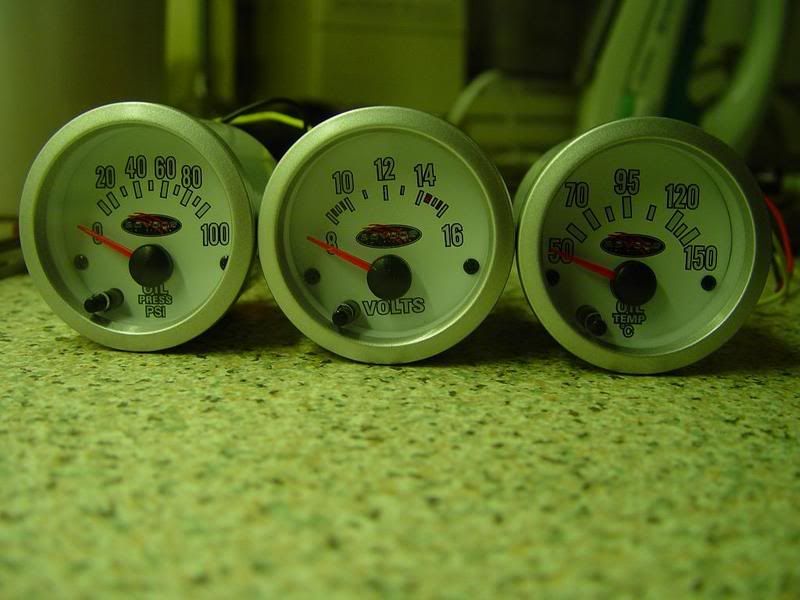

My gauges are as follows, Oil Temp, Oil Pressure (PSi) and Voltage.
I have also ordered the T piece to allow me to connect the sender unit for the oil pressure gauge aswell as leaving the original oil pressure switch still connected. Which looks like this:
(Image stolen from woodsy's thread, read it here!)
Once I recieve more parts and start wiring them up I will post more pictures. I hope I can help you people wanting to do this as I go along.
Ta,
Fred
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
27th March 2007, 22:57
|
#2
|
|
Saxperience Hardcore!
Join Date: Mar 2005
Location: Pompey/Darlo
Posts: 31,546
Car(s): MK1 - 1.1 Animal
|
DIN slot?
|
|
|
|
|
27th March 2007, 23:00
|
#3
|
|
Saxperience Forum Bum
Join Date: Jan 2006
Location: area 51, navada desert
Posts: 2,809
Car(s): mk1 1998 silver saxo vts
|
din is another word for 'the size of a standard stereo' lol
nice pic too  ... good luck
__________________
MK1 SAXO VTS...
|
|
|
|
|
27th March 2007, 23:03
|
#4
|
|
Saxperience Hardcore!
Join Date: Mar 2005
Location: Pompey/Darlo
Posts: 31,546
Car(s): MK1 - 1.1 Animal
|
guessed it was that, rather have my stereo!
|
|
|
|
|
27th March 2007, 23:03
|
#5
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
yer DIN = stereo slot. The sender unit for the oil temp replaces the sump plug by the looks of things, so that one should be a piece of piss and so should the oil pressure provided your part numbers are correct from Demon Tweaks woodsy  Where did you wire you voltage gauge up to woodsy? Any ignition live wire?
Stereo is going in the glove box...
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
27th March 2007, 23:04
|
#6
|
|
Saxperience Hardcore!
Join Date: Mar 2005
Location: Pompey/Darlo
Posts: 31,546
Car(s): MK1 - 1.1 Animal
|
ah makes sense now
|
|
|
|
|
27th March 2007, 23:04
|
#7
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
will look good mate i couldnt do without my tunes though
whats the turny knobs for on the gauges then???
i wired my volt gauge to the head units switched live
__________________
|
|
|
|
|
27th March 2007, 23:07
|
#8
|
|
Saxperience Forum Bum
Join Date: Jan 2006
Location: area 51, navada desert
Posts: 2,809
Car(s): mk1 1998 silver saxo vts
|
the turny knobs are buttons i think pred ... maybe change the colour of the dials????
all part numbers where copied from the packaging when i received them so should be right
and yes the voltage goes to my stereo ignition live ...
any probs just p.m me
__________________
MK1 SAXO VTS...
|
|
|
|
|
27th March 2007, 23:08
|
#9
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
They change the back light colour as far as im aware my instructions are shit....
STEREO IS GOING IN THE GLOVE BOX! lol
Tunes? My infinity components distort way before i can actually here the song when driving.... silly exhuast and engine mount lol I love it really.
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
27th March 2007, 23:20
|
#10
|
|
Frequent Poster
Join Date: Dec 2005
Location: Portsmouth United Kingdom (England)
Posts: 631
Car(s): 54 reg Honda Civic Sport.
2.0L Sierra sapphire.
|
Fredjudd where did you aquire this single din pod piece of porn from?
I want one!
__________________
CITROEN SAXO ALIVE WITH (LACK OF) TECHNOLOGY
|
|
|
|
|
27th March 2007, 23:26
|
#11
|
|
Frequent Poster
Join Date: Jun 2006
Location: Norwich
Posts: 730
Car(s): Saxo VTR Mk2 Wicked Red - Suzuki jimny soft top
|
|
|
|
|
|
27th March 2007, 23:27
|
#12
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
www.speeding.co.uk
£21.99
fuck, i wish id look on ebay more often... oh well
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
28th March 2007, 00:32
|
#13
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
id say put the headunit in the glovebox mate
i had 3 wires on my volt gauge, one for earth, one for switched live and one for sidelights, it dims slightly when you put the sidelights on
__________________
|
|
|
|
|
31st March 2007, 20:46
|
#14
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
Right I went to fit my oil temp gauge and the replacement sum isnt the correct thread so it wont screw in! Nightmare!
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
31st March 2007, 20:51
|
#15
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
get a die and put the correct threads on it  is it to big for the hole or too small anyway??
dies if you dont know what i mean by them
http://www.toolsnstuff.co.uk/index.p...ce0e7ae04db72d
put a bolt in the hole to find the correct size ie m10 etc then buy a die to suit it
__________________
Last edited by Predator_R32; 31st March 2007 at 20:55.
|
|
|
|
|
1st April 2007, 23:14
|
#16
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
yer i might have to, it starts but then gets real tight after about 1/4 of a turn...
the original sump plug goes 95% of the way in easily by hand....
Still waiting on the T peice from demon tweaks....
Also I thought I would test my voltmeter over the battery and nothing, any ideas?
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
3rd April 2007, 17:19
|
#17
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
how many wires does the volt gauge have?? and tbh i wouldnt connect the volt gauge straight to the battery just test it on a swiched live and earth it and turn the key to ignition
__________________
|
|
|
|
|
3rd April 2007, 19:37
|
#18
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
ok ill do that on thursday on ma day off.
BONUS! I got the T peice for the oil pressure thingy from demon tweaks today. all it looking good for that.
Also about the sump plug , the one i have been supplied has a tapered thread and the standard one is not so hopefully I can source the correct one and then im good to go....
Just need to find a way of routing the cables from the cabin to the engine bay... lol
__________________
Quote:
Originally Posted by Cloud
Can you not see?
All 1.1 owners are noobs...
|
|
|
|
|
|
3rd April 2007, 19:42
|
#19
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
just use the one for power cable for amps the gromet
__________________
|
|
|
|
|
3rd April 2007, 20:49
|
#20
|
|
Established Member
Join Date: Aug 2006
Location: Salisbury
Posts: 1,118
Car(s): Saxo VTR full Janspeed exhuast (4-2
|
power cable for amps? you seen my car? no amps... no rear seats etc.. lol
