Harness fixing point (centre console area)
(Search button has been used)
How do people mount the lap part of the harness on to the car? I'm sure i've read somewhere that people drill a hole in sliding subframes and mount an eyelet there? The way i was thinking of doing it was to weld an eye bolt plate ( http://www.demon-tweaks.com/products...pcode=OMPDB418) to the tunnel/centre console area? Will this be secure enough or will it need another plate welded underneath for more strength.
How have you lot attached yours, is there a more simple way?
Cheers.
|
|
|
|
8th February 2010, 20:51
|
#2
|
|
Frequent Poster
Join Date: May 2008
Location: Northampton city
Posts: 897
Car(s): Mk1 Saxo eastcoast 1.1,
Mk2 Black Saxo VTR
|
What seats? and what harnessess? ie, 3 point 4 point?
|
|
|
|
|
8th February 2010, 22:43
|
#3
|
|
Established Member
Join Date: Dec 2009
Location: Essex
Posts: 1,006
|
Quote:
Originally Posted by Tabzman
What seats? and what harnessess? ie, 3 point 4 point?
|
Corbeau forza with bottom mount sliding subframes, sabelt 4 point catch type harnesses.
|
|
|
|
|
9th February 2010, 19:28
|
#4
|
|
Saxperience Forum Bum
Join Date: Jun 2008
Location: Harlow, essex
Posts: 2,731
Car(s): Clio 182
|
|
|
|
|
|
9th February 2010, 19:46
|
#5
|
|
Established Member
Join Date: Dec 2009
Location: Essex
Posts: 1,006
|
Problem now solved.
|
|
|
|
|
9th February 2010, 21:43
|
#6
|
|
Saxperience Forum Bum
Join Date: Jun 2008
Location: Harlow, essex
Posts: 2,731
Car(s): Clio 182
|
Quote:
Originally Posted by Saaamon
Problem now solved.
|
good good
|
|
|
|
|
9th February 2010, 21:47
|
#7
|
|
Saxperience Forum Bum
Join Date: Dec 2007
Location: bromley
Posts: 2,728
Car(s): Nissan S13, Saxo Furio
|
how did you do it mate?
|
|
|
|
|
11th February 2010, 19:24
|
#8
|
|
Established Member
Join Date: Dec 2009
Location: Essex
Posts: 1,006
|
Quote:
Originally Posted by samueljonburgess
how did you do it mate?
|
I'm going to make a guide on this because it was something i was stuck on and many other people seem to get stuck aswell.
You buy stress plates, think thats what there called anyway, so you just drill a hole in to the shell where you want the eye bolt to be, then theres a plate that goes either side of the hole then bolt it all up and job done.
|
|
|
|
|
11th February 2010, 19:33
|
#9
|
|
Established Member
Join Date: Apr 2008
Location: Reading
Posts: 2,045
Car(s): iTB'd MK2 VTR
|
I cheated and drilled a hole into the side mounts bad I know but mehh....
__________________
Quote:
Originally Posted by raunchz
muffin's 8v will get everyone a bit moist in the future
|
|
|
|
|
|
11th February 2010, 19:42
|
#10
|
|
Established Member
Join Date: Dec 2009
Location: Essex
Posts: 1,006
|
Quote:
Originally Posted by SaxoMuffin
I cheated and drilled a hole into the side mounts bad I know but mehh....
|
I get the feeling alot of people do that, but i was never comfortable attaching it directly to the subframe.
|
|
|
|
|
11th February 2010, 19:45
|
#11
|
|
Saxperience Hardcore!
Join Date: Nov 2007
Location: Guantanamo Bay
Posts: 28,700
Car(s): oyster card
|
My subframes had eyelets on when i had some
__________________
|
|
|
|
|
11th February 2010, 19:49
|
#12
|
|
Saxperience Forum Bum
Join Date: Dec 2007
Location: bromley
Posts: 2,728
Car(s): Nissan S13, Saxo Furio
|
ye a guide would be handy mate cheers
|
|
|
|
|
11th February 2010, 19:51
|
#13
|
|
Frequent Poster
Join Date: Oct 2009
Location: blackpool
Posts: 745
Car(s): clio 182
1998 saxo vts
|
this is what i did

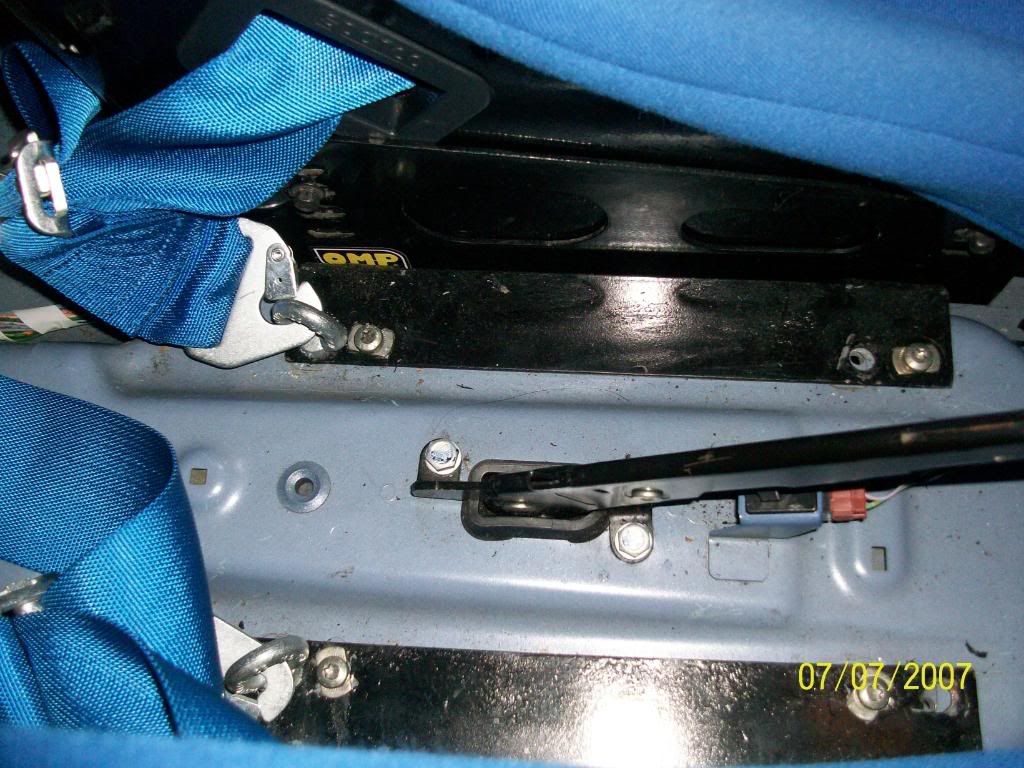

i got an m8 eye bolt and used the spare hole which the subframe bolts to the floor
|
|
|
|
|
11th February 2010, 19:55
|
#14
|
|
Established Member
Join Date: May 2009
Location: Ellesmere (Shropshire)
Posts: 1,044
Car(s): superchared 106 gti
|
Quote:
Originally Posted by andyt81
this is what i did
i got an m8 eye bolt and used the spare hole which the subframe bolts to the floor
|
what subframes you using out of interest??
__________________
Because Boost Is Best
|
|
|
|
|
11th February 2010, 19:58
|
#15
|
|
Frequent Poster
Join Date: Oct 2009
Location: blackpool
Posts: 745
Car(s): clio 182
1998 saxo vts
|
i have no idea, i got the seats 2nd hand, they included side mounts and the subframe in the sale
|
|
|
|
|
11th February 2010, 23:04
|
#16
|
|
Established Member
Join Date: Dec 2009
Location: Essex
Posts: 1,006
|
Quote:
Originally Posted by db_sax
My subframes had eyelets on when i had some |
Mine are in the post so i don't know if they have them or not, but think it depends on the make.
|
|
|
|
|
23rd May 2010, 12:36
|
#17
|
|
Saxperience Forum Bum
Join Date: Jun 2007
Location: Bristol/Bucks
Posts: 2,931
Car(s): N3CNM
8v y0¬!
|
Quote:
Originally Posted by Saaamon
I'm going to make a guide on this because it was something i was stuck on and many other people seem to get stuck aswell.
.
|
You done this at all mate? Would help me out a lot in a week or so!
|
|
|
|
