Please help! VTR alternator setup on a VTS? How?
Does anyone have any photos of a VTR alternator setup on a VTS?
Or/ and a description of the parts involved.
I really want to use the VTR setup to sit my alternator away from my manifold.
It is the lower bracket I seem to be struggling with most, thanks.
|
|
|
|
16th March 2013, 14:26
|
#2
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Need both brackets with the tensioner
The 8v crank pulley and the 8v belt
Easy
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 16:10
|
#3
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
I have, what I'm led to believe, is a mk2 VTR setup but it doesn't fit. The top bracket lines up perfect.
|
|
|
|
|
16th March 2013, 18:45
|
#4
|
|
L-plater
Join Date: Feb 2012
Posts: 61
|
Recently fitted vtr alternator brackets to gti engine not sure if the holes are diff on vts but had to drill some new holes to make it work
|
|
|
|
|
16th March 2013, 18:52
|
#5
|
|
Saxperience Post Whore
Join Date: Dec 2002
Location: United Kingdom
Posts: 8,390
|
Quote:
Originally Posted by da1gingertiger
Recently fitted vtr alternator brackets to gti engine not sure if the holes are diff on vts but had to drill some new holes to make it work
|
They shouldnt need it, i run a vtr alt setup on my vts and all i needed to do was run a tap up the existing holes
|
|
|
|
|
16th March 2013, 19:10
|
#6
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
Is there a guide? I would like to see the set up, particularly the lower bracket.
|
|
|
|
|
16th March 2013, 20:43
|
#7
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Post pic of brackets ill tell you if they're right
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 20:47
|
#8
|
|
Saxperience Post Whore
Join Date: Nov 2010
Location: Kent
Posts: 8,439
Car(s): Gen 7 Celica 190.
|
As said you'll need to tap the thread, but make sure its the VTR bracket and not any other 8v i was told any 8v set up would fit and it didnt. Must be the VTR set up.

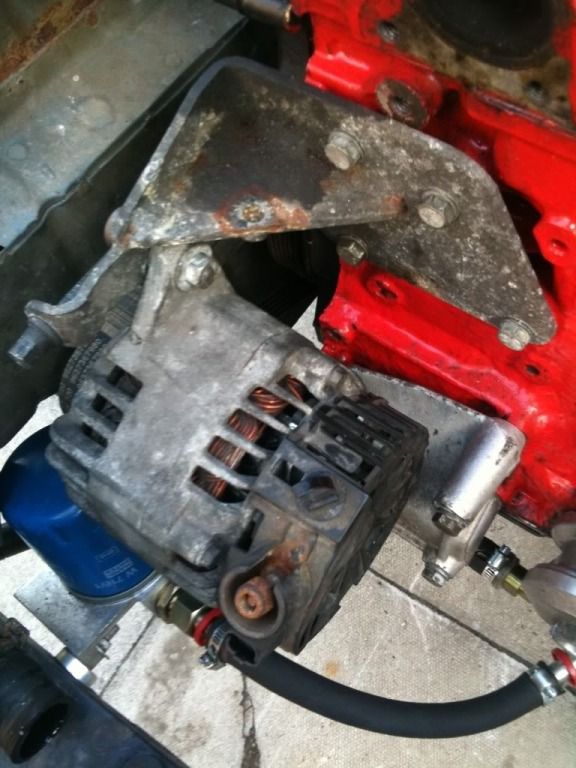

Not my car but
|
|
|
|
|
The Following User Says Thank You to Cam For This Useful Post:
|
|
|
16th March 2013, 20:50
|
#9
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Yeah it has to be from a cast block, the alloy block engines run diff brackets I Think
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 20:51
|
#10
|
|
Saxperience Post Whore
Join Date: Nov 2010
Location: Kent
Posts: 8,439
Car(s): Gen 7 Celica 190.
|
Quote:
Originally Posted by blackie_2k5
Yeah it has to be from a cast block, the alloy block engines run diff brackets I Think
|
Yes they are after i ripped all my 16v set up apart not paying attension how it all went i found out it was different.
Dam interwebz
|
|
|
|
|
The Following 2 Users Say Thank You to Cam For This Useful Post:
|
|
|
16th March 2013, 20:58
|
#11
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Too many diff set ups from cit/pug
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
The Following User Says Thank You to blackie_2k5 For This Useful Post:
|
|
|
16th March 2013, 23:02
|
#12
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
Like I say, top (tensioner) bracket seems ok, this is the bottom one that is being troublesome..
|
|
|
|
|
16th March 2013, 23:07
|
#13
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Look like alloy block mount
Prett sure that's not a cast block mount, on phone ATM so could be wrong, but I'm fair sure that's not the right mount
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 23:09
|
#14
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
This is the top bracket that's ok, both brackets are (meant to be) off the same car, a 2002 mk2 VTR.
|
|
|
|
|
16th March 2013, 23:13
|
#15
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
Have you tried running a tap down the holes as posted?
Top one looks right, bottom looks diff but can really tell as on phone, as posted though, the block won't be tapped for the vtr bracket in most cases
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 23:14
|
#16
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
Quote:
Originally Posted by blackie_2k5
Look like alloy block mount
Prett sure that's not a cast block mount, on phone ATM so could be wrong, but I'm fair sure that's not the right mount
|
That would explain why it's a swine to fit. You haven't got the one I need do you?
Bigger pics btw....
pic hosting
photo uploader
|
|
|
|
|
16th March 2013, 23:16
|
#17
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
I don't mate, my last one went to a forum member, but I've had lots of R engines, even from the very late 03/53plates
And never seen a lower that looked like that
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
16th March 2013, 23:17
|
#18
|
|
Saxperience Hardcore!
Join Date: Oct 2008
Location: Birtley
Posts: 22,253
Car(s): VTR Turbo, 106 xsi track slag, Transit recovery, B
|
It looks like it could fit though, trying to map it out in my head
Do th holes line up to any of the bosses on the Block?
__________________
Quote:
Originally Posted by Stissy
EDIT: i give up on you.
|
Quote:
Originally Posted by Giraffe
FUCK YES. I won on the internet.
|
|
|
|
|
|
20th March 2013, 00:05
|
#20
|
|
Newbie
Join Date: May 2008
Location: boston
Posts: 29
Car(s): wicked red saxo vtr ,silver vtr and now a icelandi
|
Spot on thread
|
|
|
|
