Fuel Filter & Coilpack Queries
Evening folks,
1. While i was servicing the S i came accross this plug on the outlet side of the fuel filter which i couldnt figure out how to remove. Anyone know?

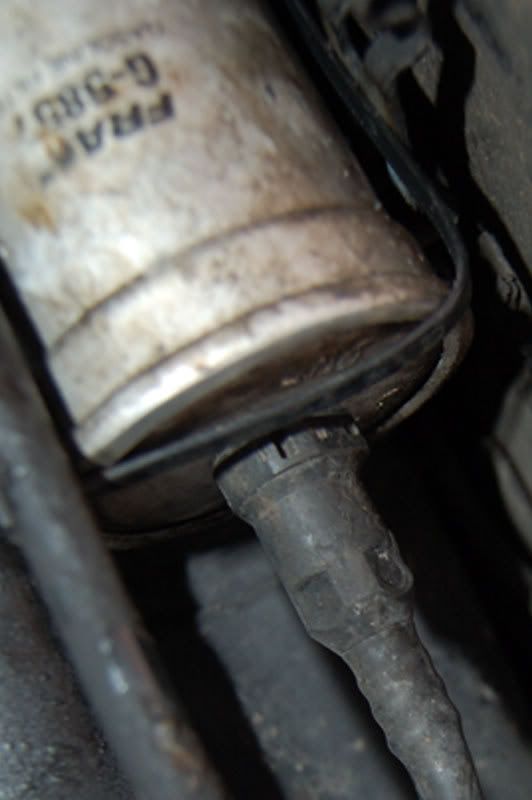

Fuel Filter Plug
2. Also i was gonna swap my coilpack for a different one so see if it changed the way the car idles / performs (as its rather sluggish down the torque end of the scale atm) The white plugged pack below was from a 3 plug ECU model & mine on the left is a single plug model. There any difference in the packs or can i just file that extra plastic strip off of the white one so the plug matches my old one?

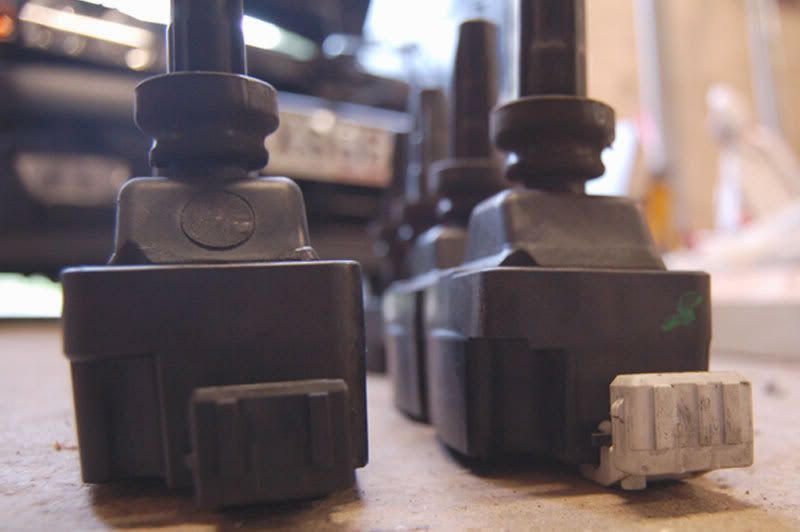

Coil Pack Plugs
Thanking you
|
|
|
|
21st June 2007, 00:47
|
#2
|
|
Established Member
Join Date: Jan 2006
Location: Staines massive!!
Posts: 2,144
Car(s): 02 clio 172
|
on the fuel filter there should be a little button type thing on the connector u press and then just pull the pipe. its tricky to get off but if u keep trying it will eventually give way
im prety sure the coil pack on a mk2 is diff to a mk1......
__________________
|
|
|
|
|
21st June 2007, 00:51
|
#3
|
|
Scotland
Join Date: Jul 2005
Location: Edinburgh
Posts: 9,556
Car(s): Saxo 1.6i 16v VTS, 2 Classic Minis
|
The plug on the other side of the filter has a button on it but this one doesnt appear to.
In what way are the packs different though? They both look the same, have the same connections etc & both fit. It just seems to be that the 3 plug has 3 plastic ridges on it & the single plug only has 2
|
|
|
|
|
21st June 2007, 00:54
|
#4
|
|
Established Member
Join Date: Jan 2006
Location: Staines massive!!
Posts: 2,144
Car(s): 02 clio 172
|
im sure its the way it interacts with the ECU, they are diff for a reason all i could say is try?
__________________
|
|
|
|
|
21st June 2007, 01:14
|
#5
|
|
Established Member
Join Date: Jan 2006
Location: Staines massive!!
Posts: 2,144
Car(s): 02 clio 172
|
also with the filter u will have to fiddle alot took me 45min to get mine off lol
__________________
|
|
|
|
|
21st June 2007, 01:30
|
#6
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
grind the middle bit on the plug off i say
__________________
|
|
|
|
|
21st June 2007, 17:16
|
#7
|
|
Established Member
Join Date: Jan 2006
Location: Staines massive!!
Posts: 2,144
Car(s): 02 clio 172
|
Quote:
Originally Posted by Predator_VTR
grind the middle bit on the plug off i say |
gow is he going to refit it then?? lol
__________________
|
|
|
|
|
21st June 2007, 20:24
|
#8
|
|
Saxperience Post Whore
Join Date: Mar 2007
Location: Reading
Posts: 8,980
Car(s): French tin can
|
Angel is correct about the fuel filter. That side has a less obvious button you need to pinch, just like the plug on the other side.
If you're unsure about the coil pack, just give the dealership a quick bell, it won't cost nothing but a phone call.
__________________
Quote:
Originally Posted by FinchysSaxo
Some say hes the biggest drug dealer in Toadville!
|
Quote:
Originally Posted by sax-oli
and that his dealings even stretch as far as Brazil!
|
Quote:
Originally Posted by Colin
All we know is that he's called the Toad!
|
|
|
|
|
|
21st June 2007, 20:39
|
#9
|
|
Super Moderator
Join Date: Mar 2003
Location: Durham (England)
Posts: 37,932
Car(s): 1. AX
2. Mk2 Saxo VTR
3. MK4 R32 DBP
|
Quote:
Originally Posted by angelVTR98
gow is he going to refit it then?? lol
|
i meant the middle bit on the plug so it only has two grooves on it like the left hand side
__________________
|
|
|
|
|
21st June 2007, 21:54
|
#10
|
|
Newbie
Join Date: Jun 2007
Posts: 22
|
Stick an ohmmeter across the contacts, if its the same reading they've got the same windings.
|
|
|
|
