Dual Rear Fog Light Mod How To

[Nick_Bush]

How to get both rear fog lights working if you only have one.

Not sure if this has been done before, but thought I would put some pics up and some very basic instructions.

Remove both light clusters with the screw in the boot, and pull forward the light cluster to remove.

Unplug both connectors using a flat blade screw driver pressing in on the metal tag and store light cluster safe.

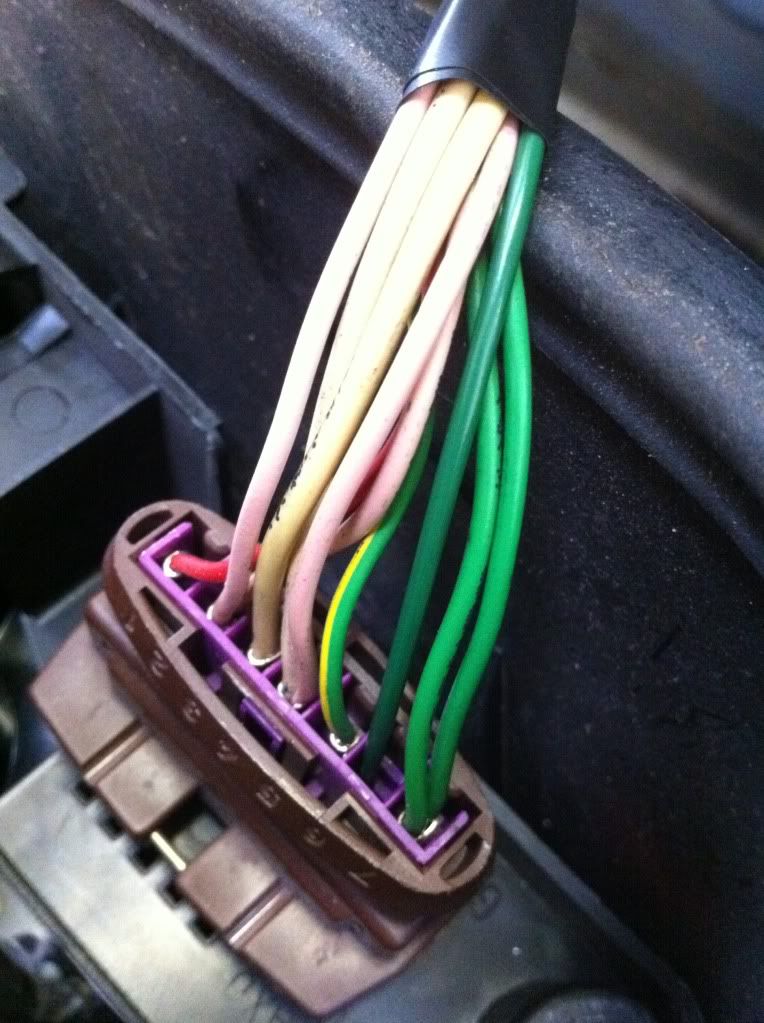

On the near side (passenger side) you will notice there is a wired pin missing in pin number 6 on the plug.



Insert a wire into pin 6 and secure to loom, any colour wire will do, I used dark Green.



Tape up to the existing loom using PVC tape or similar.
Run the wire into the car the same way the existing loom is, you will need to remove the air vent panel in the boot (1 X Phillips screw) to gain access.

Run your wire down the boot floor and through the off side vent hole, back out of the car to the off side light loom.



You will notice the plugs are wired differantly on both sides, the wire colour you want is Grey (Pin 2) Strip off the insullation and splice into the Grey wire. Tape up all connections.

Insert a bulb into the near side fog light hole and put the car back together.

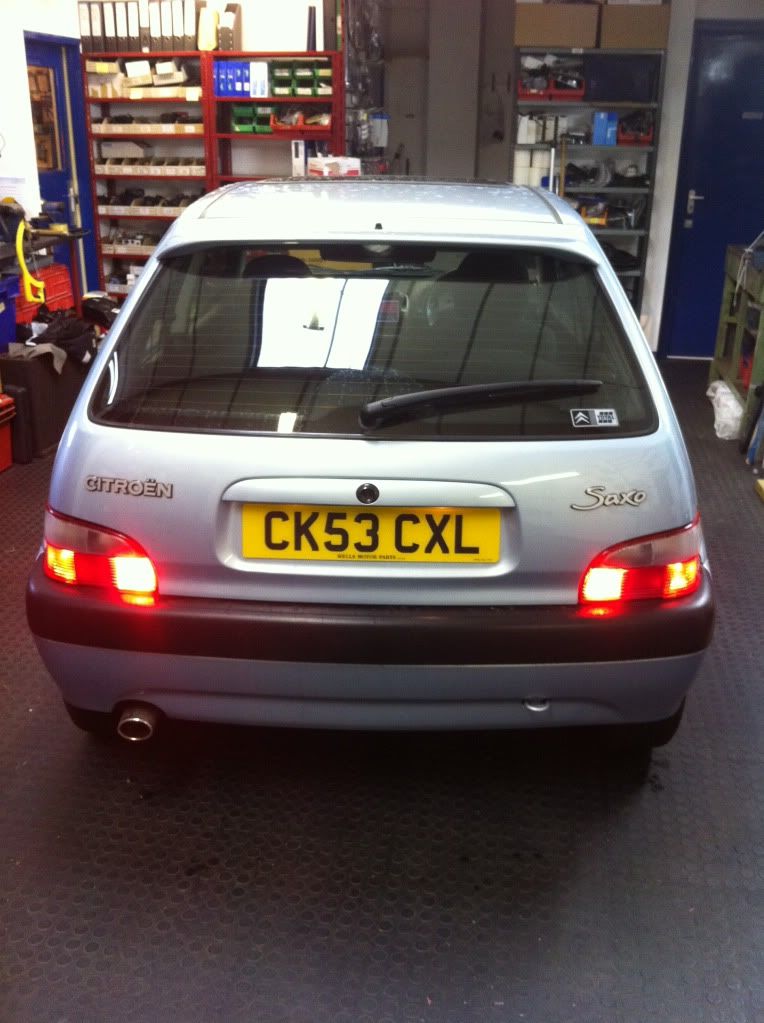

You should be left with Dual fog lights





Both reverse lights still work as they should.

My car is 2003, I pressume the wiring is the same on all ages but you would need to double check everything if your wiring colours are differant to mine or is a MK1.

Hope this is usefull

[johnnyg_vts]

Never going to do it but that's a great guide. Very explanatory.

[stevo67]

I thought on the bulb holder that there was just a plastic strip that you cut then insert the bulb,as the wiring is already there mate?

[Nick_Bush]

Originally Posted by johnnyg_vts

Never going to do it but that's a great guide. Very explanatory.

I never even used my rear foglights until last week, probably wont again!

[Nick_Bush]

Originally Posted by stevo67

I thought on the bulb holder that there was just a plastic strip that you cut then insert the bulb,as the wiring is already there mate?

There was no power going into that side of the bulb holder that I could see.

[SAXOOOOOOOOOO]

Looks sweet!


---
I am here: http://tapatalk.com/map.php?4j3scv

[andy1weir]

i just plugged in a bulb and it worked, wiring already there, just popped out plastic bit inside casing and that was it

[Mochachino]

Originally Posted by stevo67

I thought on the bulb holder that there was just a plastic strip that you cut then insert the bulb,as the wiring is already there mate?

Originally Posted by andy1weir

i just plugged in a bulb and it worked, wiring already there, just popped out plastic bit inside casing and that was it

As above, that is all that is necessary. Remove light, break plastic off, put bulb in. Job done.

[iFurio]

Might have to give this a try tbh thank you

[andy1weir]

mines was a mk1 tho so dunno if that makes any difference

[piranhamatt]

Couldnt just splice off the working foglight one then and thread a long cable?

[Fulch]

Good guide

[Simonp]

Thought about doing this when I first got the sax...... nearly 6 years later I still haven't

[chinkostu]

My mk1 did this anyway

[Nick_Bush]

Originally Posted by piranhamatt

Couldnt just splice off the working foglight one then and thread a long cable?

That is basicly what you are doing yes.

[Nick_Bush]

Putting a bulb in and it working straight away means you have the correct wiring already, mine did not.

It sounds to me like there are differant wiring looms on differant age saxos.

[Brother-V]

Mines a 2003 reg and like yours only one fog works even though there was already a fog bulb on right side. I changed it too. Now i know of this wire i shall look later and look into dual fog guide above

[Nick_Bush]

Originally Posted by Brother-V

Mines a 2003 reg and like yours only one fog works even though there was already a fog bulb on right side. I changed it too. Now i know of this wire i shall look later and look into dual fog guide above

Half an hour max mate.

[metromartin]

Useful guide, will give this a good soon! thanks
