Default New Petrol Cap Key Removal Guide - Pictures included

Thanks to the user named "666". As he taught me how to remove the key from the petrol cap when he was buying a petrol cap off me. He put a guide together, however all the pictures are no longer working and there have been requests for a new guide.

Information
Difficulty: Easy
Tools needed: 1 Kitchen Knife (or simular tool)
Time needed: 5 Minutes

Removing the key
First off, remove your petrol cap from your car. If you don't know how to do this then you need shooting.

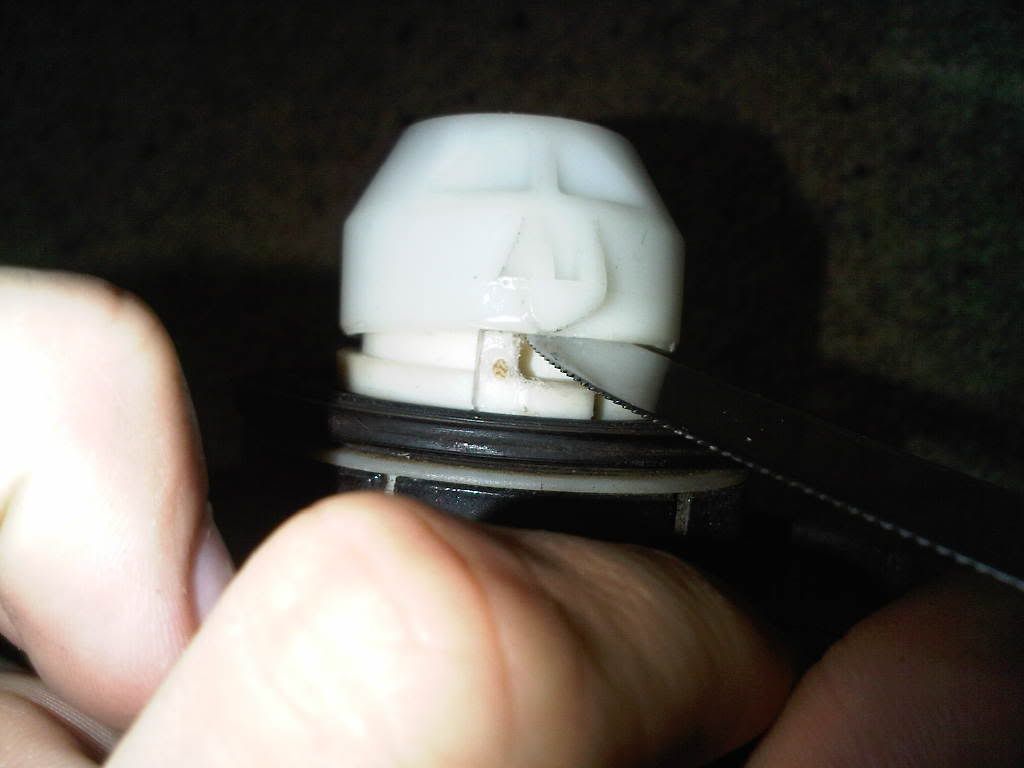

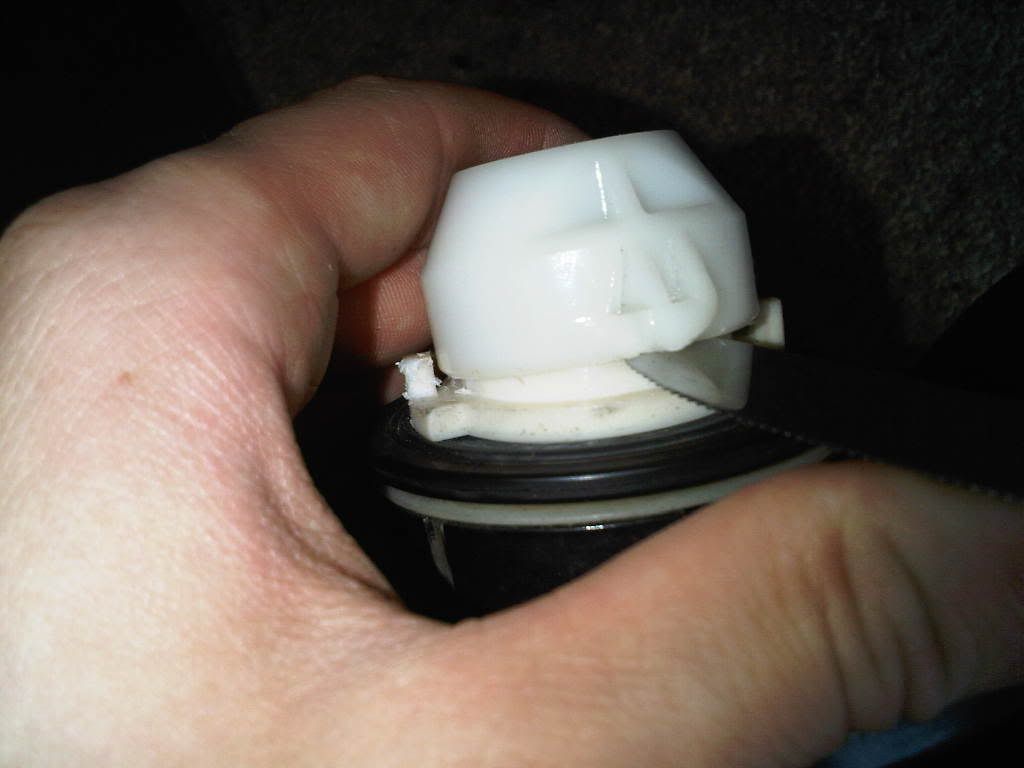

Turn your key to the lock position, and prise apart the two plastic parts as seen in the picture below.

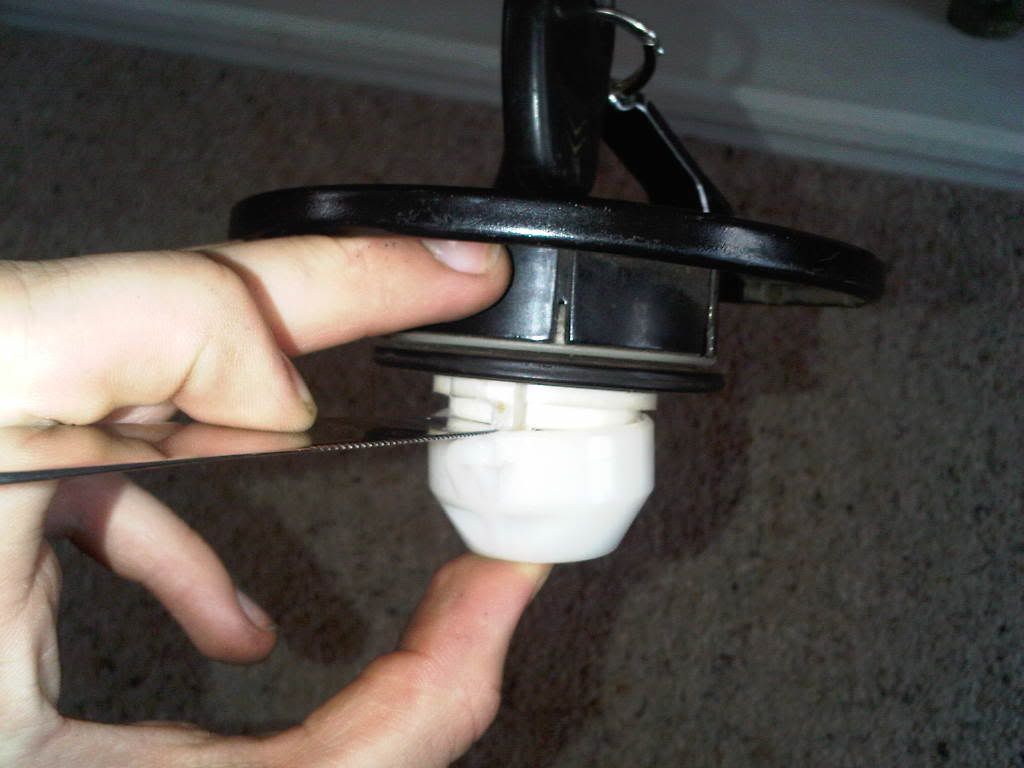

Turn the key keeping the two parts apart, seen in the picture below


Keep turning the key until it won't go any further. Keeping the parts prised apart.


Whilst the two parts are still prised apart, pull the key out.




Removing the lock from the cap

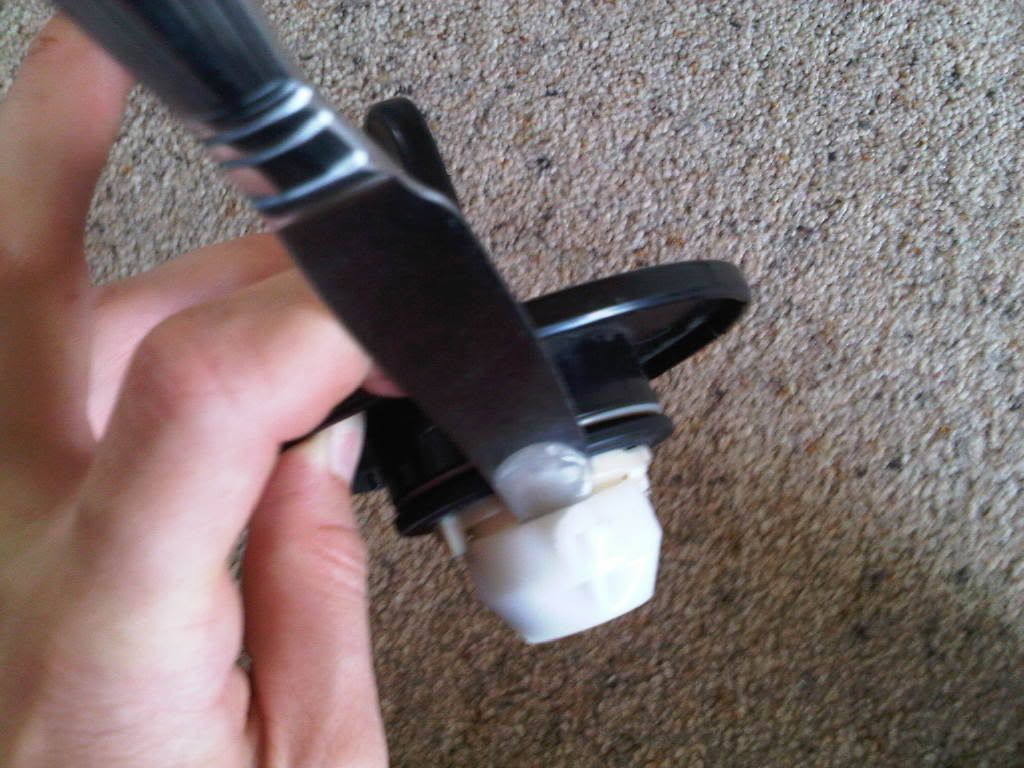

On a standard petrol cap its a case of just pulling the back from the cap. Alternatively you can use a knife and try to prise the lock from the cap.

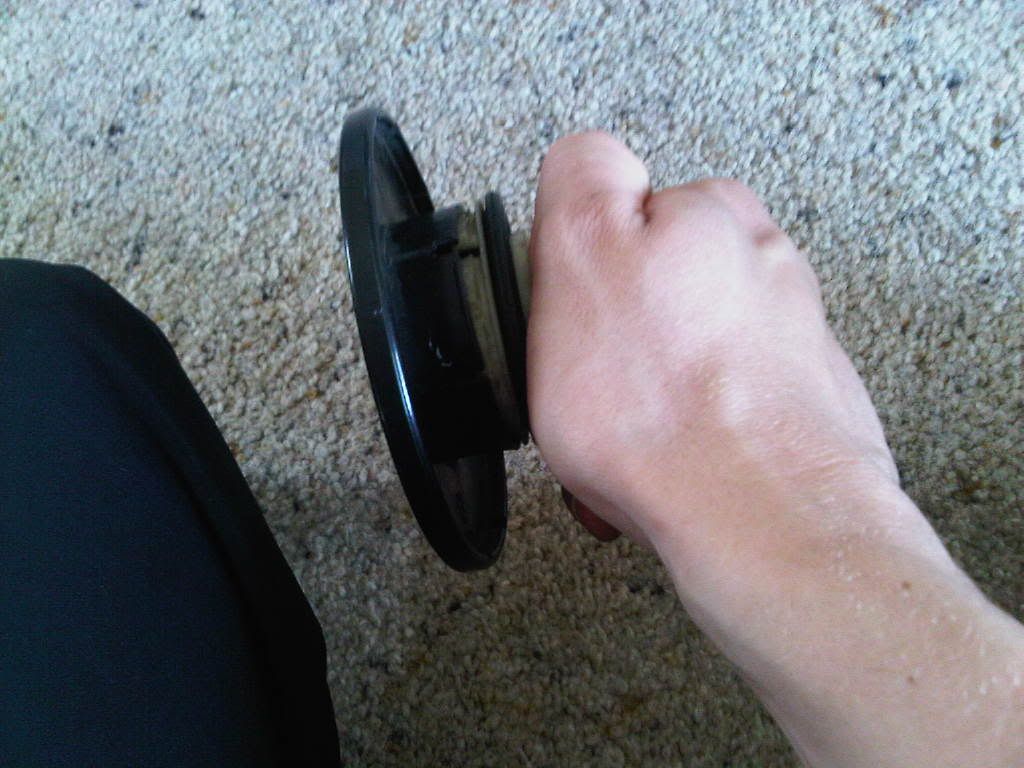

I found the best method is to hold the cap up-right on the floor..

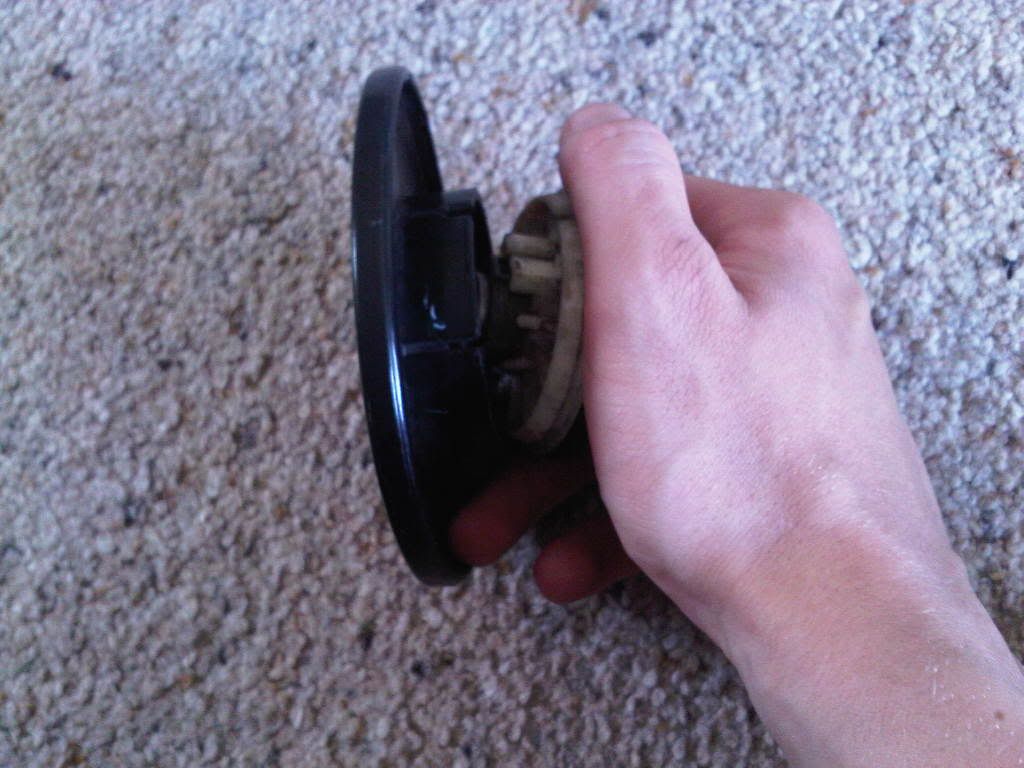

..then push down on lock part.

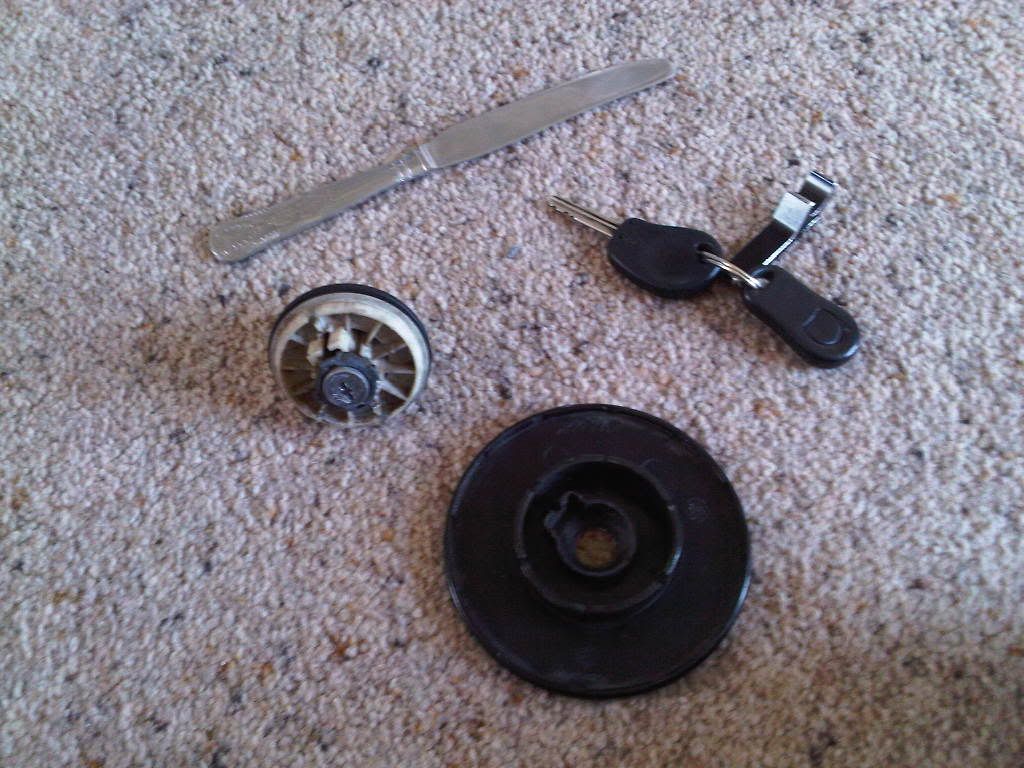

Job done


Non-standard petrol caps are the same for getting the key out. However the technique how they hold to the cap may be different. In the past i've had a petrol cap where i've had to slightly bend a couple metal 'legs' that hold it to the cap - awesome paint picture below.



Other aftermarket petrolcaps may vary, post a picture and ask for help if you get stuck.

Paul
__________________
Quote:
Originally Posted by ns9900 View Post
how big is it, edge to edge?
Quote:
Originally Posted by 12u55 View Post
14 inches or so.
Quote:
Originally Posted by ns9900 View Post
sorry bud, too big for me. GLWS tho
Paul is offline   Reply With Quote
The Following 10 Users Say Thank You to Paul For This Useful Post:
Old 16th June 2010, 13:43   #2
saxo-dude-16v
Established Member

saxo-dude-16v's Avatar

Join Date: Jun 2008
Location: south wales, Neath
Posts: 2,343
Car(s): Subaru impreza uk turbo 2000 Mazda RX8
iTrader Score: 2 (100%)
saxo-dude-16v is on a distinguished road
Default

very good mate
also nice paint image
__________________
My Impreza Progress thread:http://www.saxperience.com/forum/sho...d.php?t=414720

My C4 Loeb Progress thread: http://www.saxperience.com/forum/sho...d.php?t=472944
saxo-dude-16v is offline   Reply With Quote
Old 16th June 2010, 13:55   #3
Fallschirmjager
L-plater

Join Date: May 2010
Location: Hythe, Kent.
Posts: 76
Car(s): Mauritius Blue Saxo VTR MK1
Fallschirmjager is on a distinguished road
Default

Silly question but once the key is out of the lock, will it go back in again? The reason I ask is I've bought another fuel cap as the one I have now is in rag order. I want to change the lock around onto a new(ish) fuel cap so I can use the same key.
Fallschirmjager is offline   Reply With Quote
Old 16th June 2010, 14:02   #4
Paulp
Super Moderator
Track / Motorsport PrepNorth West Region Member

Paul's Avatar

Join Date: Aug 2007
Location: Lancashire
Posts: 14,256
Car(s): Astra VXR + 1989 Astra GTE
iTrader Score: 37 (100%)
Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!
Default

Yes the lock will go into another/the same petrol cap.

If its a standard replacement, it will just push in.
__________________
Quote:
Originally Posted by ns9900 View Post
how big is it, edge to edge?
Quote:
Originally Posted by 12u55 View Post
14 inches or so.
Quote:
Originally Posted by ns9900 View Post
sorry bud, too big for me. GLWS tho
Paul is offline   Reply With Quote
The Following User Says Thank You to Paul For This Useful Post:
Old 16th June 2010, 14:06   #5
Fallschirmjager
L-plater

Join Date: May 2010
Location: Hythe, Kent.
Posts: 76
Car(s): Mauritius Blue Saxo VTR MK1
Fallschirmjager is on a distinguished road
Default

Cheers mucker.
Fallschirmjager is offline   Reply With Quote
Old 16th June 2010, 23:26   #6
Matt.S2
Frequent Poster
Track / Motorsport PrepWest Midlands Region Member

Matt.S2's Avatar

Join Date: Feb 2010
Location: Redditch
Posts: 672
Car(s): iTB 106 Rallye
iTrader Score: 12 (100%)
Matt.S2 is on a distinguished road
Default

Good guide, helped me out a lot! Thanks!
Matt.S2 is offline   Reply With Quote
Old 16th June 2010, 23:46   #7
citroen_saxo_vtr
Saxperience Forum Bum

citroen_saxo_vtr's Avatar

Join Date: Mar 2006
Location: Norwich
Posts: 2,823
Car(s): Vectra sri 2.6 v6
iTrader Score: 6 (100%)
citroen_saxo_vtr is on a distinguished road
Default

Handy to know! nice guide dude. Do yo think i could fit my standard lock to an aliminium cover? the lock is the same size and clipped in the same.
citroen_saxo_vtr is offline   Reply With Quote
Old 16th June 2010, 23:47   #8
Paulp
Super Moderator
Track / Motorsport PrepNorth West Region Member

Paul's Avatar

Join Date: Aug 2007
Location: Lancashire
Posts: 14,256
Car(s): Astra VXR + 1989 Astra GTE
iTrader Score: 37 (100%)
Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!Paul is absolutely fabulous!
Default

Quote:
Originally Posted by citroen_saxo_vtr View Post
Handy to know! nice guide dude. Do yo think i could fit my standard lock to an aliminium cover? the lock is the same size and clipped in the same.
Yes, i can't see why not.

Thanks for the thanks peoples

Credit goes to "666" though as he made the original guide for me a few months ago
__________________
Quote:
Originally Posted by ns9900 View Post
how big is it, edge to edge?
Quote:
Originally Posted by 12u55 View Post
14 inches or so.
Quote:
Originally Posted by ns9900 View Post
sorry bud, too big for me. GLWS tho
Paul is offline   Reply With Quote
Old 16th June 2010, 23:54   #9
citroen_saxo_vtr
Saxperience Forum Bum

citroen_saxo_vtr's Avatar

Join Date: Mar 2006
Location: Norwich
Posts: 2,823
Car(s): Vectra sri 2.6 v6
iTrader Score: 6 (100%)
citroen_saxo_vtr is on a distinguished road
Default

Cheers dude il have ago in the morning at work lol.
citroen_saxo_vtr is offline   Reply With Quote
Old 17th June 2010, 00:09   #10
johnlambert
Saxperience Forum Bum

johnlambert's Avatar

Join Date: Mar 2009
Location: Dublin
Posts: 4,359
Car(s): Honda S2000
iTrader Score: 1 (100%)
johnlambert is on a distinguished road
Default

ah you kept to your word paul nice one!!!
__________________
I HAS LIFT YO!!

http://www.saxperience.com/forum/sho...d.php?t=352778
johnlambert is offline   Reply With Quote
Old 17th June 2010, 00:47   #11
johnr32
Saxperience Forum Bum
South East Region Member

johnr32's Avatar

Join Date: Jan 2010
Location: London
Posts: 2,768
iTrader Score: 3 (100%)
johnr32 is on a distinguished road
Default

Thanks for the guide mate, lets hope the pictures stay alive this time
johnr32 is offline   Reply With Quote
Old 19th December 2010, 16:00   #12
piebobs71
Frequent Poster
Scotland Region Member

piebobs71's Avatar

Join Date: Nov 2009
Location: Arbroath
Posts: 749
Car(s): Golf Gti 1.8 20v T
iTrader Score: 22 (100%)
piebobs71 is on a distinguished road
Default

tried this,now after placing the lock part in another cap my key wont come out,any help?
piebobs71 is offline   Reply With Quote
Old 19th December 2010, 16:41   #13
piebobs71
Frequent Poster
Scotland Region Member

piebobs71's Avatar

Join Date: Nov 2009
Location: Arbroath
Posts: 749
Car(s): Golf Gti 1.8 20v T
iTrader Score: 22 (100%)
piebobs71 is on a distinguished road
Default

will the key only come out when its in the lock and in the locked position or you have a knife keeping the parts apart? am i being a total fool here?
piebobs71 is offline   Reply With Quote
Old 19th December 2010, 17:12   #14
PeteSaxo
Infrequent Poster

PeteSaxo's Avatar

Join Date: Jun 2010
Location: Stourbridge
Posts: 215
Car(s): Saxo 1.1 Mk1
PeteSaxo is on a distinguished road
Default

Nice guide thanks! I want a standard black petrol cap back on mine as it came with an after market cap I dont like!
PeteSaxo is offline   Reply With Quote
Old 19th December 2010, 19:11   #15
piebobs71
Frequent Poster
Scotland Region Member

piebobs71's Avatar

Join Date: Nov 2009
Location: Arbroath
Posts: 749
Car(s): Golf Gti 1.8 20v T
iTrader Score: 22 (100%)
piebobs71 is on a distinguished road
Default

Anyone please help I've had to buy a shitty plastic temp thing as I don't wanna put the real on in case it won't come out so if anybody can help please
piebobs71 is offline   Reply With Quote
Old 6th April 2011, 17:35   #16
JOEVTRR
L-plater

JOEVTRR's Avatar

Join Date: Feb 2011
Location: Holywell
Posts: 61
Car(s): Saxo VTR 2002 Artic Steel
JOEVTRR is on a distinguished road
Default

Cheers mate helped alot
JOEVTRR is offline   Reply With Quote
Old 18th April 2011, 20:10   #17
RickVTR
Regular Poster

Join Date: Feb 2011
Location: Leyland, Lancashire
Posts: 265
Car(s): 2000 Saxo VTR
RickVTR is on a distinguished road
Default

i found an easier way today....take the petrol cap off like you normally do...unclip the cap from the lock so it wobbes and put your petrol cap back on the car and lock it. remove the key and the cap then falls off. the reverse is needed to put a new one on
RickVTR is offline   Reply With Quote
Old 25th June 2011, 21:24   #18
Venns
Established Member

Venns's Avatar

Join Date: Jan 2011
Location: Bridgwater, Somerset
Posts: 1,092
Car(s): 2001 Saxo 1.1
iTrader Score: 1 (100%)
Venns is on a distinguished road
Default

Will use this guide tomorrow when respraying my chrome cap black
Venns is offline   Reply With Quote
Old 26th June 2011, 09:52   #19
DavidsVTR
Established Member
Track / Motorsport PrepYorkshire Region Member

DavidsVTR's Avatar

Join Date: Mar 2010
Location: Bradford
Posts: 1,490
Car(s): '02 VTR, '92 106 XSI 16v
iTrader Score: 7 (100%)
DavidsVTR is on a distinguished road
Default

This helped me alot! Thanks
__________________

http://www.saxperience.com/forum/sho...d.php?t=354424 <-- Ice Grey VTR Progress!
http://www.saxperience.com/forum/sho...d.php?t=459153 <-- Cherry red XSI 16v Project!
DavidsVTR is offline   Reply With Quote
Old 27th December 2012, 18:46   #20
GusPaterson
Newbie

Join Date: Dec 2012
Location: Leeds/Gloucester
Posts: 5
Car(s): 106 1.1 Indy
GusPaterson is on a distinguished road
Default

Registered just to say sick guide! Properly helpful!
