29th May 2010, 16:20
|
#321
|
|
Saxperience Post Whore
Join Date: Jun 2006
Location: Ramsey st marys, peterborough
Posts: 8,288
Car(s): Saxo's, Corsa (Daily)
|
Looking very nice indeed dude
love the crank
|
|
|
|
29th May 2010, 16:40
|
#322
|
|
Saxperience Addict
Join Date: Jul 2005
Location: Solihull / Bournemouth
Posts: 14,233
Car(s): 2015 Lapiz Blue Golf R
|
Jesus, sounds like a lot of material was taken off the crank !
Looks good progress, love the pedal box !!!
|
|
|
|
|
29th May 2010, 16:48
|
#323
|
|
Infrequent Poster
Join Date: May 2009
Location: armitage/lichfield/rugeley/staffordshire
Posts: 174
Car(s): 106 XSi
saxo vtr
saxo vtr converted to vts
|
probly 1 of the best threads ive seen mate
|
|
|
|
|
30th May 2010, 09:30
|
#324
|
|
Established Member
Join Date: Sep 2008
Location: Cornwall
Posts: 1,594
Car(s): Mk 1 Red VTR
|
Very nice mate, keep the updates coming!
|
|
|
|
|
30th May 2010, 17:46
|
#325
|
|
Established Member
Join Date: Oct 2008
Location: Milton Keynes
Posts: 1,210
Car(s): Yellow 106 Rallye
|
WOW! Cheers for all the comments!
Today I finally got to something that seems like I've been waiting forever to do!
I finally managed to build the engine up (mostly).

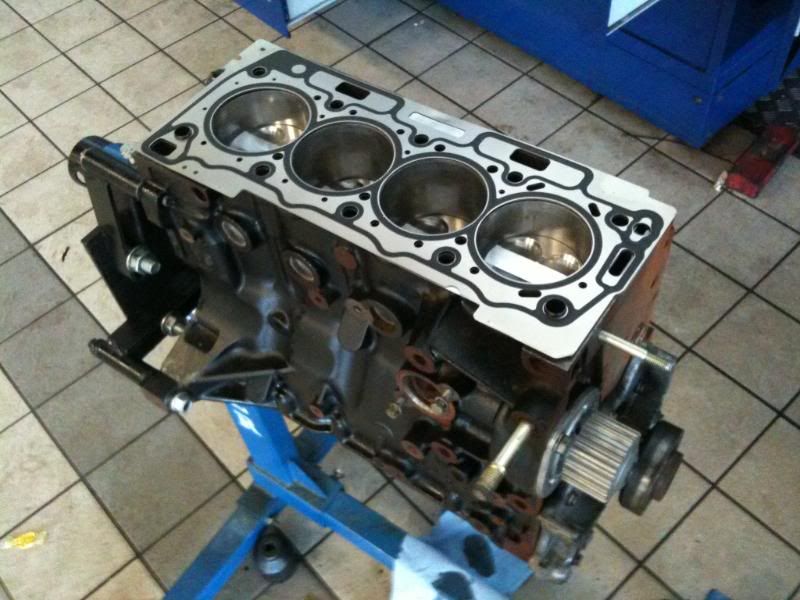

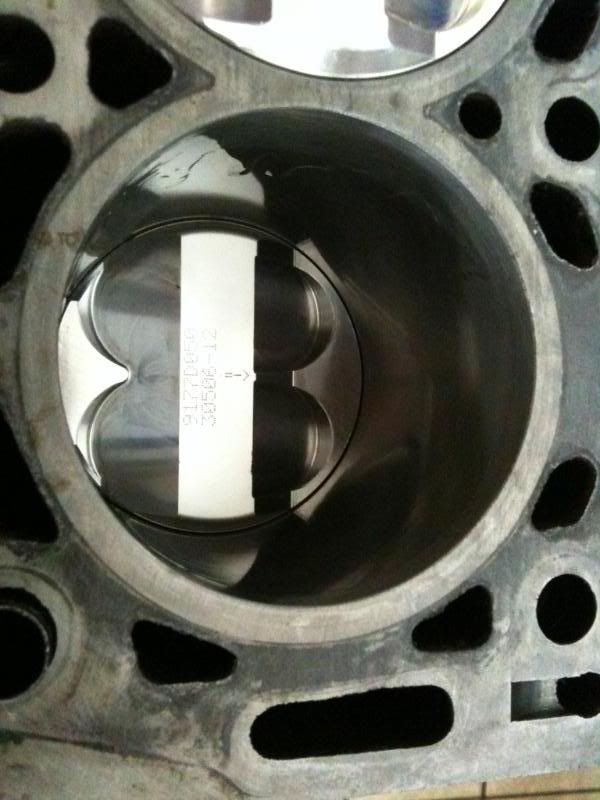

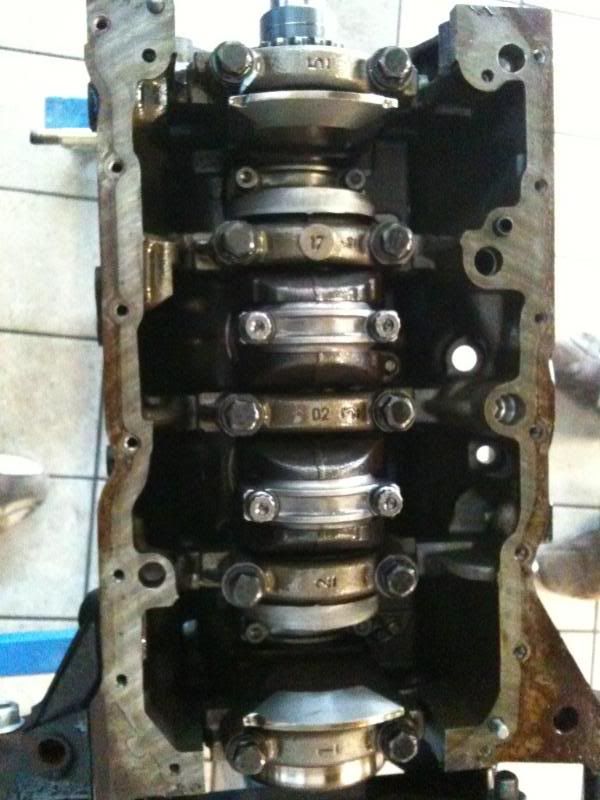

To begin with I get the rest of the pistonsand rods in.

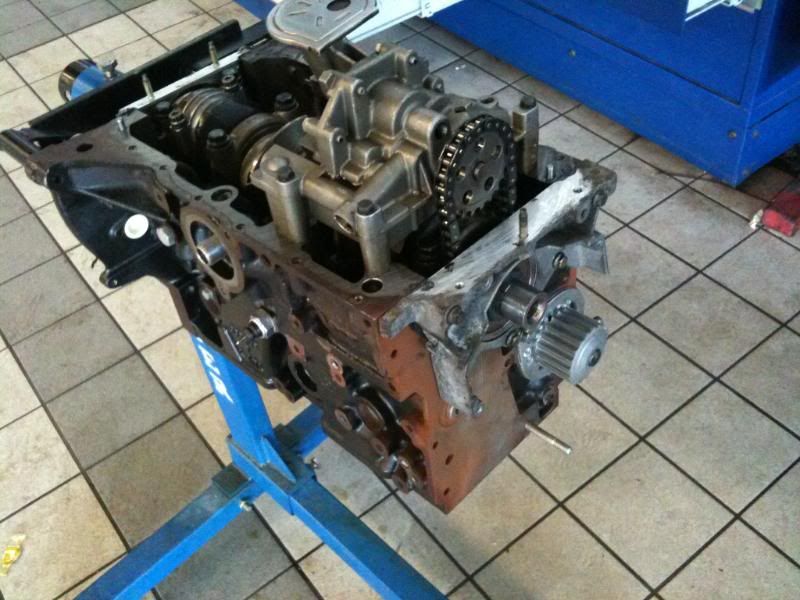

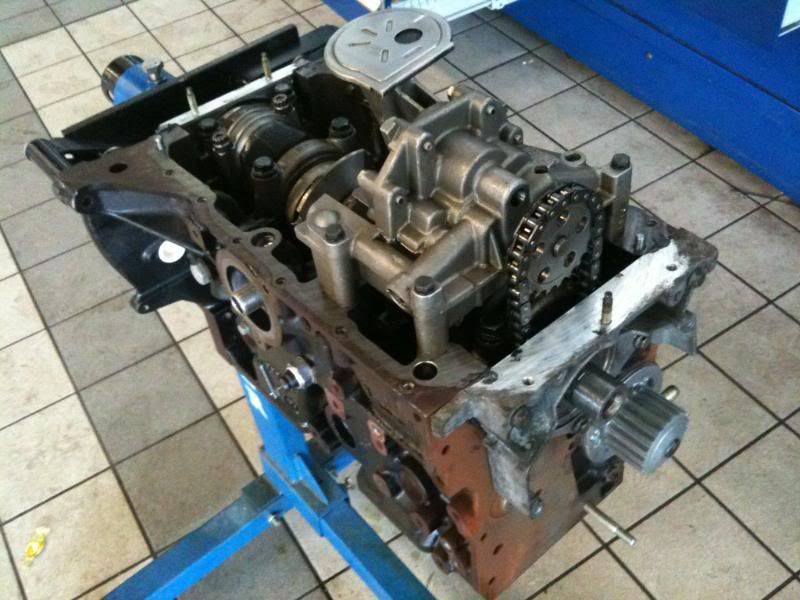

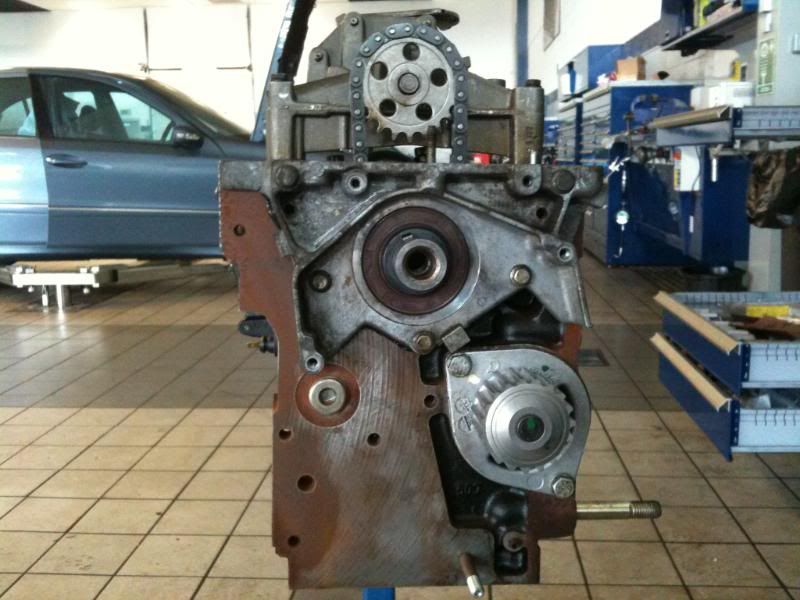

Next I built up the rest of the bottom end, oil pump, main seals etc...

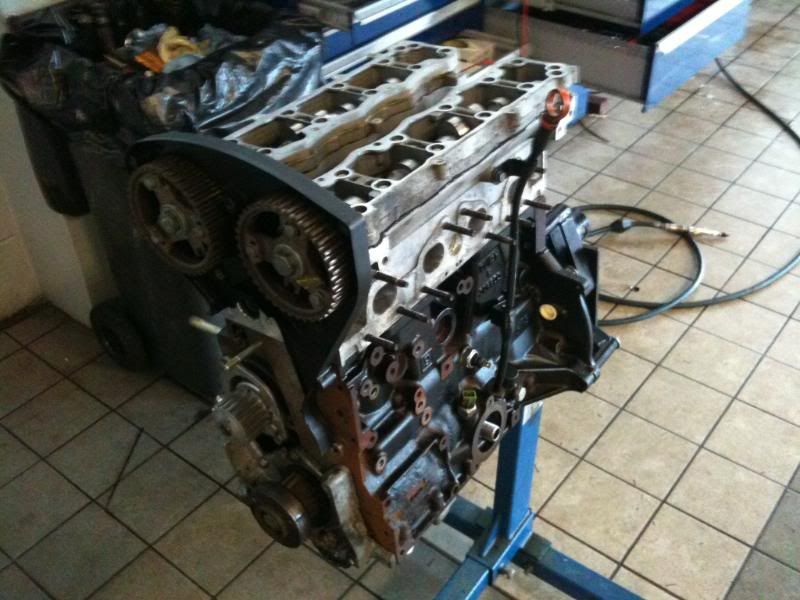

Finally with the bottom end most the way there I get the head bolted on

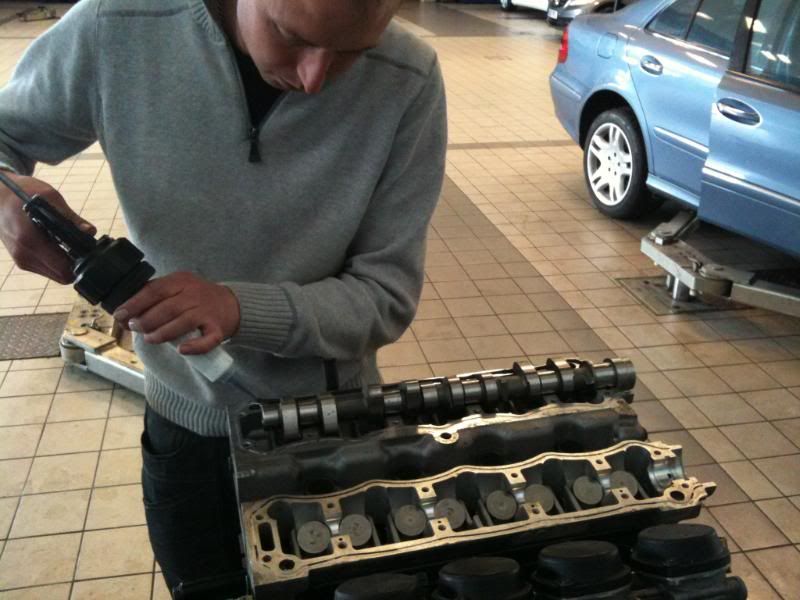

Just realized I didn't take any picture of this stage, but next we got the cams and cam ladders sealed up and bolted in.

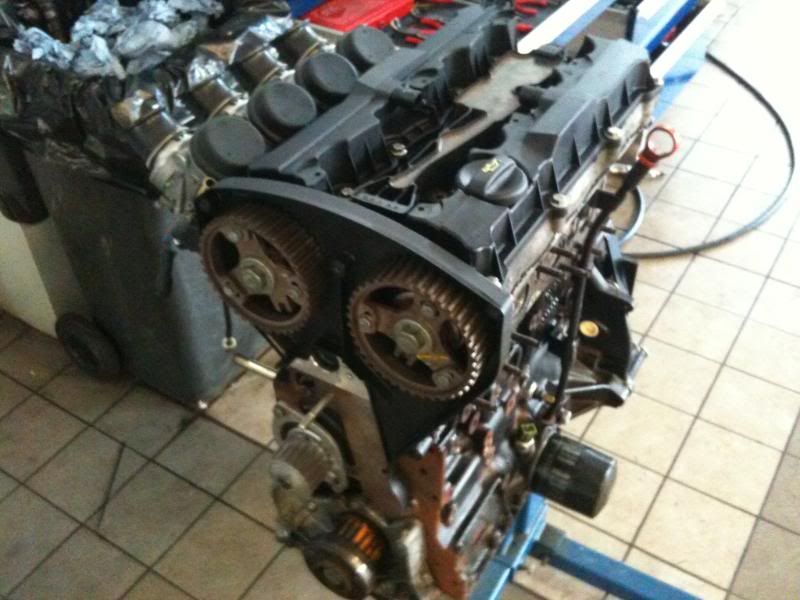

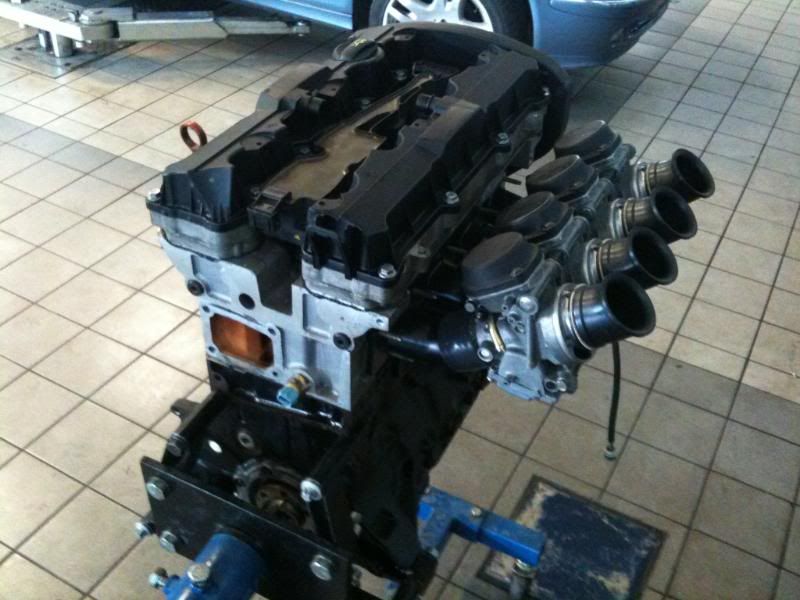

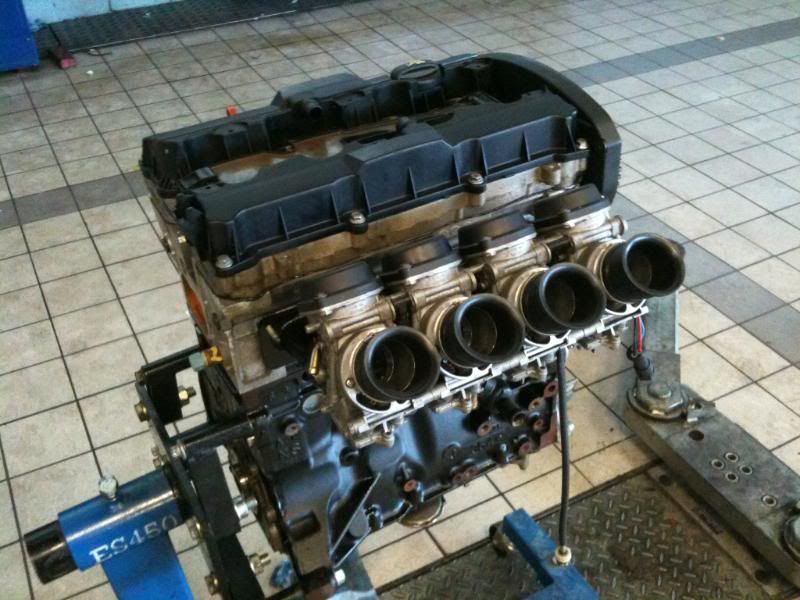

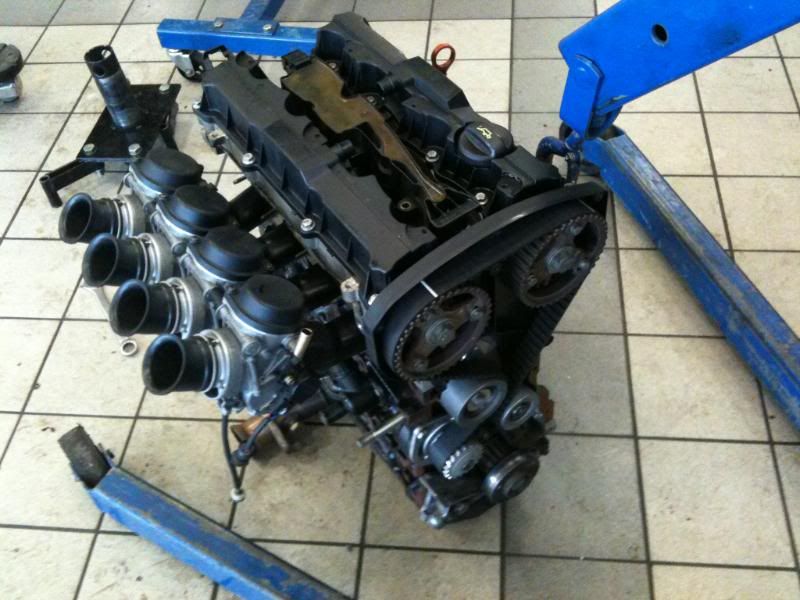

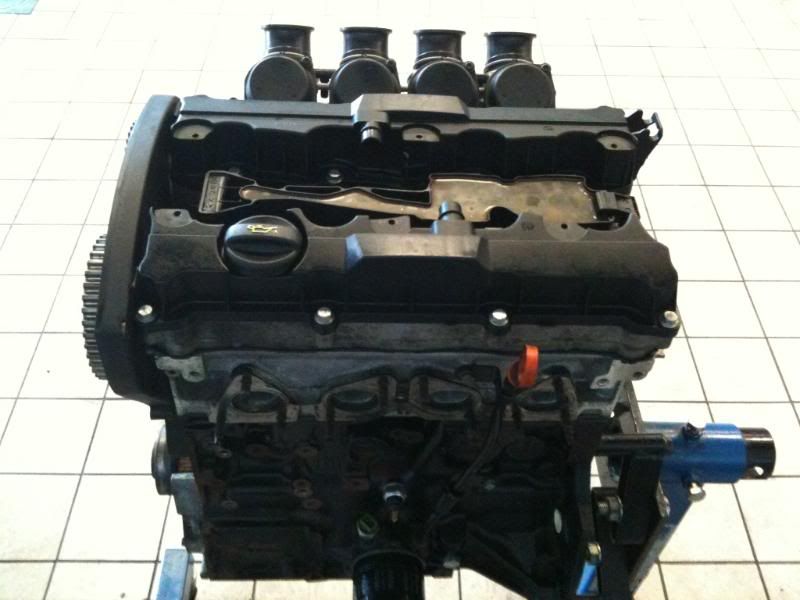

Unfortunately I left the dowl that the cam belt tensioner goes onto on the old J4 engine so I couldn't get the belt on and get it timed up but I did get the cam covers on, and trial fit the carbs and coil pack and I think it all looks pretty dam good!
Few more bits and bobs to sort and hopefully it shouldn't be too long until its in the car and running.
Cheers for looking, just glad to be finally making progress!
|
|
|
|
|
30th May 2010, 19:56
|
#326
|
|
Saxperience Hardcore!
Join Date: May 2007
Posts: 16,839
Car(s): Saxo VTS, Westfield
|
looking good dude
|
|
|
|
|
2nd June 2010, 22:15
|
#327
|
|
Established Member
Join Date: Oct 2008
Location: Milton Keynes
Posts: 1,210
Car(s): Yellow 106 Rallye
|
Not a hugely picturey update here, but my Supersprint exhaust manifold arrive today and I got my cambelt on and tensioned so my engine is now finally fully built up
That leaves my engine spec as follows:
TU5 JP4 engine converted for a Saxo
Gas flowed head with valve guides shaved
Newman Ph4 cams
Wossner high compression pistons
PEC forged rods
Race crank and big end bearings
Lightened by 3.7Kg and balanced crank
Lightened by 1.7Kg and balanced flywheel
Supersprint exhaust manifold
R1 carburettors
Custom modified and flowed Bogg brother inlet manifold
Now just need to drop it in the car
Last edited by Beaniemoo; 2nd June 2010 at 22:19.
|
|
|
|
|
2nd June 2010, 22:20
|
#328
|
|
Saxperience Post Whore
Join Date: Jun 2006
Location: Ramsey st marys, peterborough
Posts: 8,288
Car(s): Saxo's, Corsa (Daily)
|
very nice, just a quick question, why are you using carbs? instead of bodies?
just out of intrested that all.
andy
|
|
|
|
|
2nd June 2010, 22:39
|
#329
|
|
Established Member
Join Date: Oct 2008
Location: Milton Keynes
Posts: 1,210
Car(s): Yellow 106 Rallye
|
I'm using carbs rather than bodies as the plan with the build was a smooth clean engine bay so not needing so many wires is a real gift from that point of veiw. The engine was originally only stripped to give it a basic rebuild and perhaps some cams but these things never really go that way do they lol. So now I have a nice spec, hopfully fair power engine to fit into my smooth clean engine bay.
Can't wait
|
|
|
|
|
3rd June 2010, 17:56
|
#330
|
|
Frequent Poster
Join Date: Dec 2003
Location: Consett, NE
Posts: 861
Car(s): Saxo
|
How much was the crank dude? And where from!?
__________________
Saxoless
|
|
|
|
|
3rd June 2010, 19:24
|
#331
|
|
Infrequent Poster
Join Date: Apr 2008
Location: West Yorkshire
Posts: 157
Car(s): 2002 Silver VTR
|
This car is class and the engine looks superb.
|
|
|
|
|
6th June 2010, 12:25
|
#332
|
|
Established Member
Join Date: Oct 2008
Location: Milton Keynes
Posts: 1,210
Car(s): Yellow 106 Rallye
|
More updates again!
Sorry about all the pictures, I just can't stop taking pictures of my car!
I'm liking this, we're making good progress in the car again!
Not many pictures of us working on the car as it was a bit nerve racking working around the engine bay!

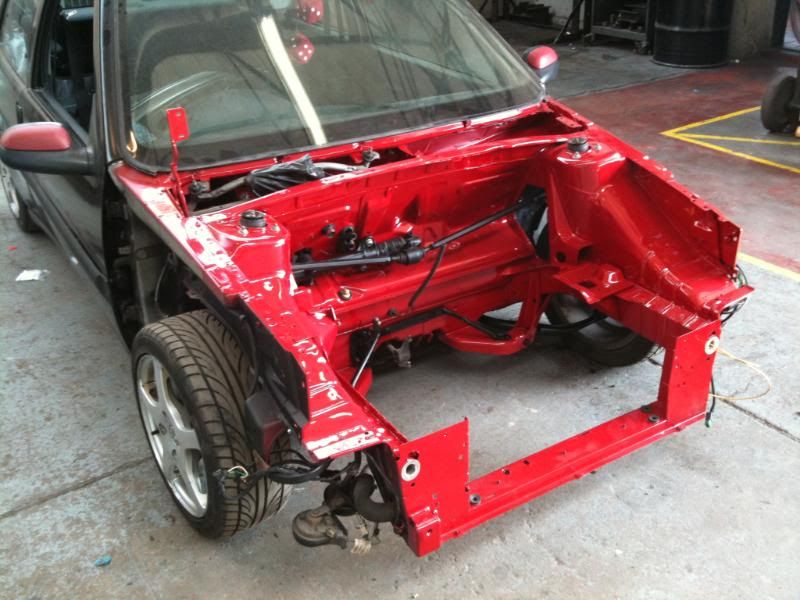

Firstly we bolting the dash as the engine loom is in the dash!

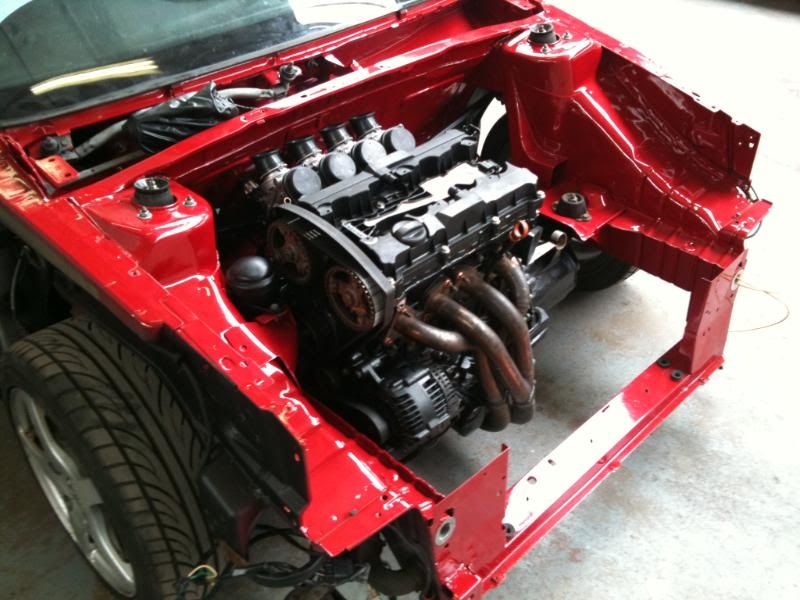

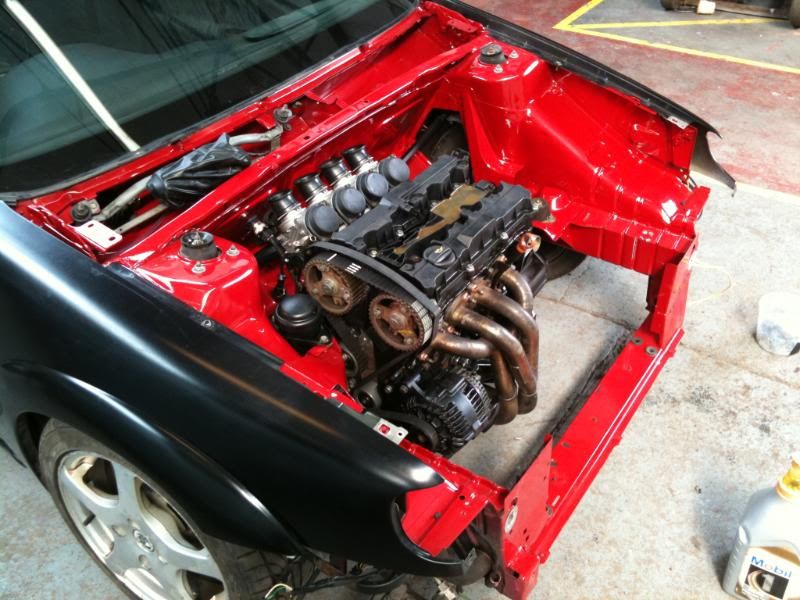

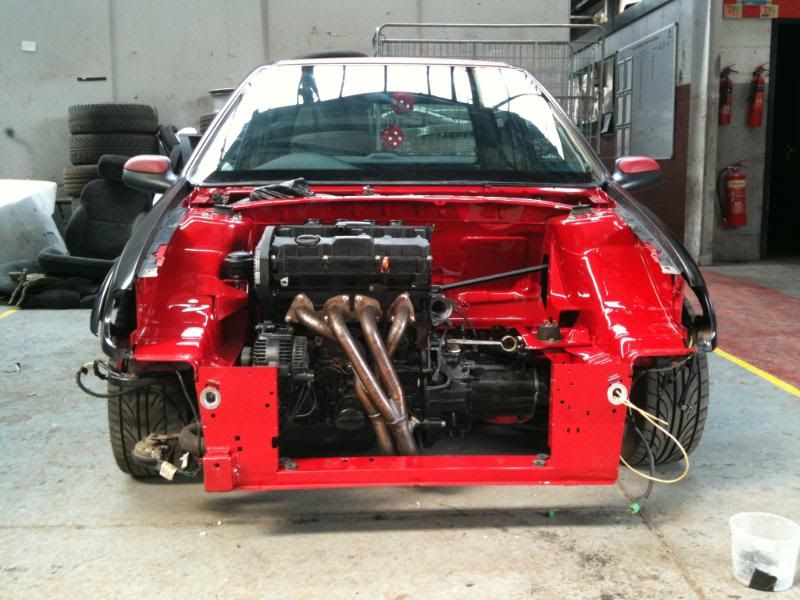

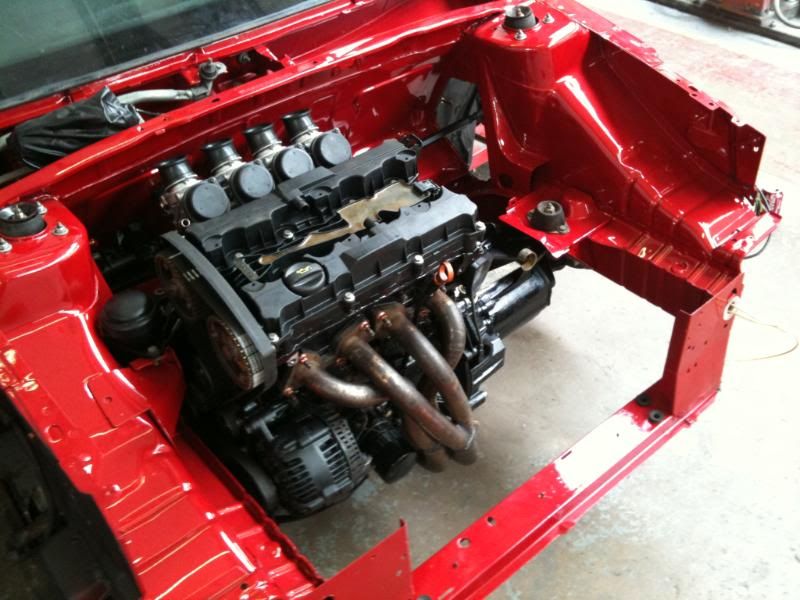

But anyways, the engine is now in and I think it looks amazing!
Also ot the wings bolted back on and leathered the car off
That is pretty much everything (bar the front end, rad etc) in the engine bay, wiring is all in and the carbs are piped up!
Hopefully more progress very soon.
|
|
|
|
|
6th June 2010, 12:42
|
#333
|
|
Saxperience Post Whore
Join Date: Sep 2008
Location: Telford, Shropshire
Posts: 6,563
Car(s): Fabia VRs
|
Looks at home in there dude
|
|
|
|
|
6th June 2010, 12:49
|
#334
|
|
Saxperience Addict
Join Date: Jul 2005
Location: Solihull / Bournemouth
Posts: 14,233
Car(s): 2015 Lapiz Blue Golf R
|
Good work - looks mental with minimal wiring!!
|
|
|
|
|
6th June 2010, 13:59
|
#335
|
|
Saxperience Forum Bum
Join Date: Mar 2008
Location: Rotherham
Posts: 4,614
Car(s): Black mk2 vts
|
Looking good pal
|
|
|
|
|
6th June 2010, 14:13
|
#336
|
|
Saxperience Post Whore
Join Date: Jun 2006
Location: Ramsey st marys, peterborough
Posts: 8,288
Car(s): Saxo's, Corsa (Daily)
|
that look sexual! love it
|
|
|
|
|
6th June 2010, 15:05
|
#337
|
|
Frequent Poster
Join Date: Dec 2007
Location: Scunthorpe
Posts: 694
Car(s): Vauxhall Corsa SRi
|
This is amazing! By far one of the best on sax-p. I dont understand why this thread doesn't recieve massive attention!
Keep it up mate.
__________________
Quote:
Originally Posted by sammyd
basically you got a sti and if you dont get it seen too then you dick turns out to be a pickle then falls into a jar of vinegar
|
Quote:
Originally Posted by rushy_23
As long as it doesnt end up the colour of your car I know I will be cool  |
|
|
|
|
|
6th June 2010, 15:22
|
#338
|
|
Yorkshire
Join Date: Dec 2005
Location: West Yorkshire
Posts: 31,079
Car(s): 1989 Golf GTi Clipper
|
Awesome amount of work gone into this since the last time I saw it.
You going to be ready for fcs?
__________________
Quote:
Originally Posted by matt_vtr_15a
I hear nottinghams nice....
|
Quote:
Originally Posted by jw1325
I heard a prick with a quiff stays there.
|
|
|
|
|
|
7th June 2010, 18:45
|
#339
|
|
Established Member
Join Date: Oct 2008
Location: Milton Keynes
Posts: 1,210
Car(s): Yellow 106 Rallye
|
Quote:
Originally Posted by garner90
This is amazing! By far one of the best on sax-p. I dont understand why this thread doesn't recieve massive attention!
Keep it up mate.
|
WOW! Thank you mate.
I've often wondered why it doesn't get as much attention but...
Quote:
Originally Posted by saxo180
Awesome amount of work gone into this since the last time I saw it.
You going to be ready for fcs?
|
I think my brother and I have both decided that neither ther Clio or Saxo are realisticly going to be ready for FCS which is a massive shame, but once they are on the road, we will endevour to get them to every show possible!
Cheers for looking
|
|
|
|
|
7th June 2010, 19:15
|
#340
|
|
Saxperience Forum Bum
Join Date: Jan 2006
Location: Banbury
Posts: 4,623
Car(s): Saxo Rally Car
Evo 6
|
Excellent work.
Where did you get the crank done? Im struggling to find a decent place.
|
|
|
|
