jasonwellwicked · 10th March 2009, 22:21

Hi folks,

Have done a few searches on here to no avail.

Has anyone got any piccys of where I need to upgrade the earthing wires in the car?

Also if anyone is able to find out the approx guage of the standard saxo wiring that would be amazing!!!

Many Thanks

J

liam_b · 10th March 2009, 23:11

il have a look think i might have some pics of my big 3 the starderd wiring is about 8gauge

if i cant find them il get some tomorrow and load them up

jasonwellwicked · 12th March 2009, 00:37

Fantastic! Cheers Liam, would be alot of help!

shaunyboy · 12th March 2009, 02:21

Alternator to Battery
Battery to Chassis
Chassis to Engine

pretty much self explanatory surely you dont need picutres of a wire.

AlexGreen · 12th March 2009, 10:25

Use 4 awg or 0 depending on what equipment you are running.

liam_b · 13th March 2009, 11:13

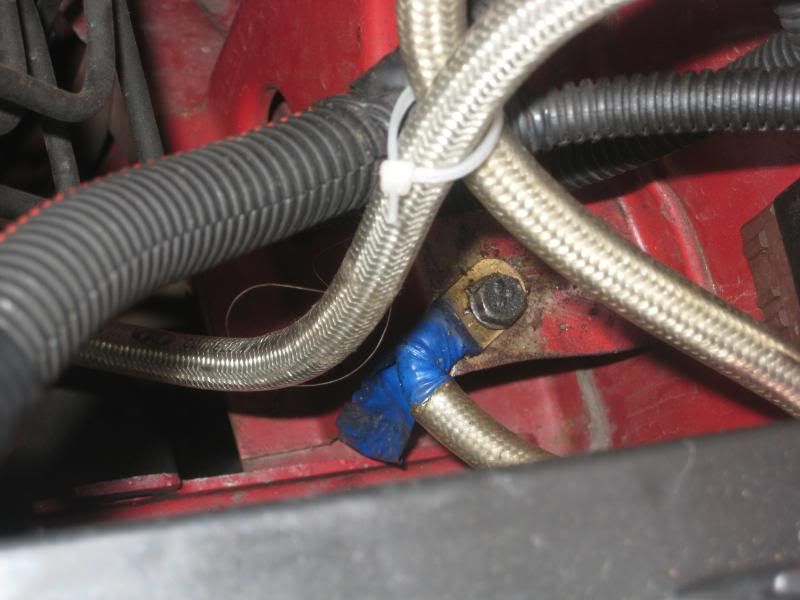

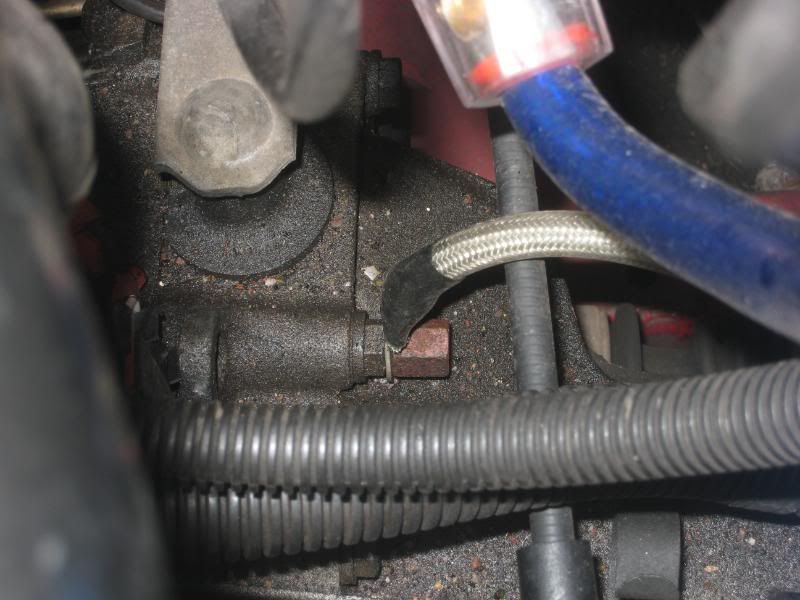

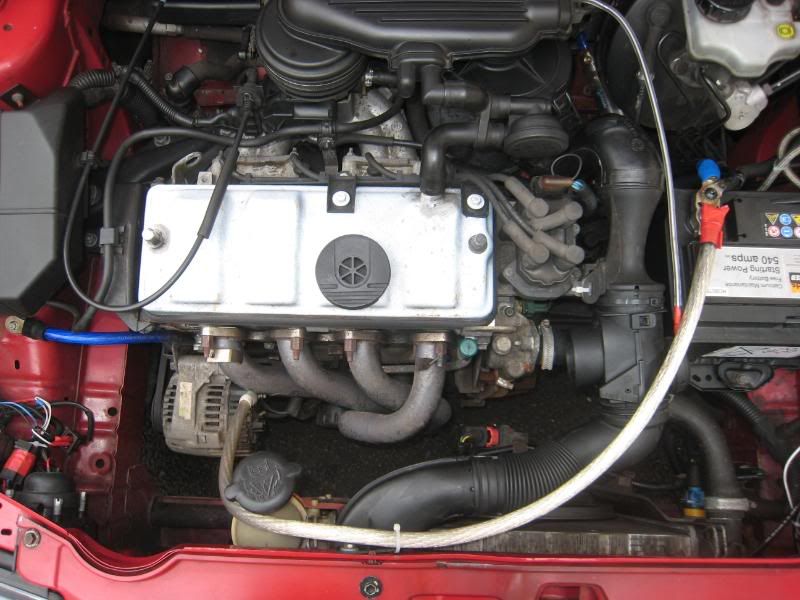

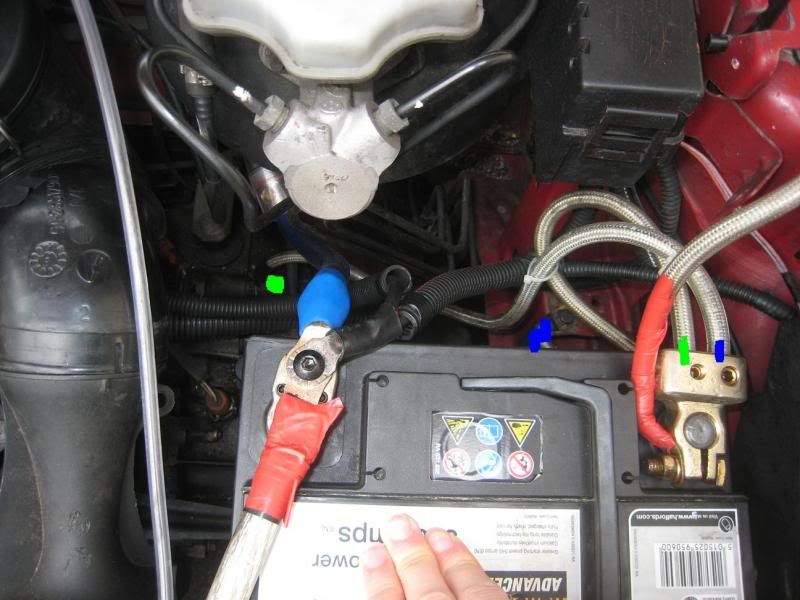

got the pics at last well my earths from the battery are 4 gauge ive got a 3rd earth on my front battery as you can see the earth behind the battery is fooked and i cant be botherd to fix it untill i get some 0 gauge

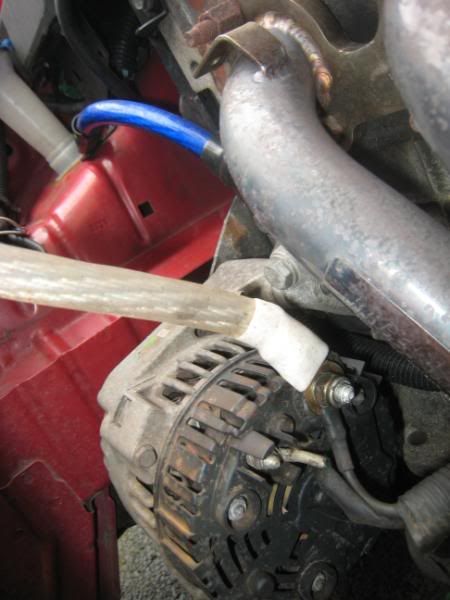

the silver cabel is the alternator + its 0 gauge to make it fit to the alternator i have to cut off the 2 plastic lips that held in the the rubber that was over the conector

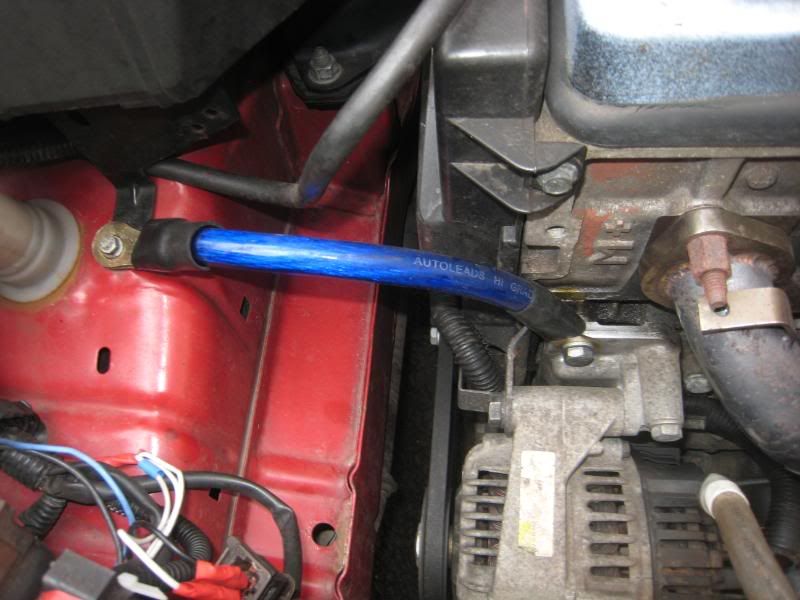

and this is just my extra earth

jasonwellwicked · 14th March 2009, 01:37

Thats been a fantastic help! Many thanks for going to the trouble of adding pictures...after all they are worth 1000 words!

Are you still in the Torbay region? Telegraph hill must be interesting in your sax

J

liam_b · 14th March 2009, 16:03

its ok mate

yh still in torbay that hill sucks i try to get a run up at the bottom but the cardrops down to 30 from 70 lol

Oli · 14th March 2009, 19:59

Cheers Liam, big help for me also

rorz_vts · 8th April 2009, 11:06

cheers mate ive spent ages lookin for this

chinkostu · 8th April 2009, 23:28

just what advantage does this have?

liam_b · 9th April 2009, 00:01

gets more voltage out of the battery and alt

GTJames · 9th April 2009, 16:06

Hi all, I know its nothing to do with this but i was looking at your pics, which engine is that and what mark? cheers

James

bluenotesmiley · 9th April 2009, 16:44

It is a Mk1, 1.1

Look at his progress thread for more information mate. He has a crazy install hence the uprated big three!

Lippy · 23rd April 2009, 01:10

Im part way through doing the big three myself just an addition to Liams posts.

The Alternators on Sax's only ever put out 90 amps (and thats if you fit a Xsara one) so theres no need for 0 gauge you can use 4 gauge and save yourself some money

, Ive done just that wire and I almost always get 14.4 volts now.

Also if you use 4 gauge it can be bent down the bottom of the rad keeping it nice and tidy, just remember to fuse it as if you scrape the front end the alt will earth out on the bodywork which could be nasty!

Good guide Liam, I was looking for something like this a while ago

Tontsy · 23rd April 2009, 04:15

Quote:

Originally Posted by Lippy

Im part way through doing the big three myself just an addition to Liams posts.

The Alternators on Sax's only ever put out 90 amps (and thats if you fit a Xsara one) so theres no need for 0 gauge you can use 4 gauge and save yourself some money

, Ive done just that wire and I almost always get 14.4 volts now.

Also if you use 4 gauge it can be bent down the bottom of the rad keeping it nice and tidy, just remember to fuse it as if you scrape the front end the alt will earth out on the bodywork which could be nasty!

Good guide Liam, I was looking for something like this a while ago

unless you have a big install and / or into your ICE you proberally wouldnt even hear of tb3 ... those that upgrade theirs will have something serious more than likely... like Liam im using 0 gauge, but then again we are both proberally drawing more power than a house lol, so a smoother power supply is needed.

if your going for 4 may aswell go for 0 lol... its all about the flow

saxowebby · 23rd April 2009, 06:46

so a bigger cable from the alternater to the battery and 2 decent earths on thicker cable give the battery more power to run more thank 1 amp

liam_b · 24th April 2009, 11:10

Quote:

Originally Posted by Lippy

Im part way through doing the big three myself just an addition to Liams posts.

The Alternators on Sax's only ever put out 90 amps (and thats if you fit a Xsara one) so theres no need for 0 gauge you can use 4 gauge and save yourself some money

, Ive done just that wire and I almost always get 14.4 volts now.

Also if you use 4 gauge it can be bent down the bottom of the rad keeping it nice and tidy, just remember to fuse it as if you scrape the front end the alt will earth out on the bodywork which could be nasty!

Good guide Liam, I was looking for something like this a while ago

even tho 4 gauge is fine with 80a you have to think of how hot the cable gets being in the engine bay and the lengh of the 4 gauge both thos factors give voltage loss i did tb3 with 4gauge 1st time and i saw a gain from changing from the 4 to the 0 gauge cant remember what the gain was but it is definitely worth using 0 gauge you might as well get all you can out of the charging system befor upgrading batterys. as the alt is the most inportent factor in any install as you no

you will be able to bend 0 gauge down the back of the engine only reson i havnt is because i wanted to make the wire as short as possible

liam_b · 24th April 2009, 11:12

Quote:

Originally Posted by saxowebby

so a bigger cable from the alternater to the battery and 2 decent earths on thicker cable give the battery more power to run more thank 1 amp

yes

wadoryu · 17th July 2010, 15:15

this should be made a sticky to make it easyier to find
