| Saxo Engine/Performance If you're interested in tuning Saxo engines, or if you need to know something which is engine related... this is the place for you. |
 |
|
16th February 2010, 18:23
|
#1
|
|
West Midlands
Join Date: Nov 2005
Location: Nuneaton (West Mids)
Posts: 13,835
Car(s): '64 Volvo V40 R’Design, '89 Ph1 309 GTi, ‘97 Mk1 S
|
JP4 Covers. Prices, part numbers, all you need to know
Well more and more of these questions are being asked so i thought id post up something worthwhile
JP4 front cover
Part number = 0248 L6
Price inc VAT = £56.25
JP4 back cover
Part number = 0248 L7
Price inc VAT = £50.07
Please note that:
Both covers do come with brand new seals when bought new
Front cover also comes with oil filler cap
Replacement seal
Part number = 0249 A9
Price inc VAT = £5.78
Replacement oil filler cap
Part number = 0258 56
Price inc VAT = £3.62
Bolts
Part number = 0250 74
Price inc VAT = £0.13
Your existing J4 cover bolts are fine to use as measurment wise they are the same
If you want some new ones from somewhere else the measurements are:
M6 x 1mm thread pitch x 20mm thread length
Breather piping
Part number = 1192 W0
Price inc VAT = £36.14
Lastly coilpack cover parts
Coil Pack cover
Part number = 5964 35
Price inc VAT = £8.14
Coil pack cover screws (x6)
Part number = 6924 10
Price inc VAT = £0.41 each
Citroen badge
Part number = 1566 20
Price inc VAT £7.09
That should cover everything. Hope it helps
Last edited by willsy; 16th February 2010 at 21:38.
|
|
|
|
The Following 16 Users Say Thank You to willsy For This Useful Post:
|
BIG, craig180p, Finchowned, J222JRA, jdizzy, jeffchiz, Jimmy-Boy, johnnyg_vts, Olly, raunchz, ryan_g86, Slugshead, smokeandpoke, Toad, wadoryu, Wayne |
|
16th February 2010, 18:53
|
#2
|
|
Saxperience Hardcore!
Join Date: May 2007
Posts: 16,839
Car(s): Saxo VTS, Westfield
|
Stickied. Thanks Willsy
|
|
|
|
|
16th February 2010, 20:52
|
#3
|
|
Saxperience Post Whore
Join Date: Jun 2006
Location: Ramsey st marys, peterborough
Posts: 8,288
Car(s): Saxo's, Corsa (Daily)
|
very good info!!
very pricey glad i didnt pay that
i did get the bolts, and glad to hear you can get replacement seal for these aswell
andy
|
|
|
|
|
16th February 2010, 21:39
|
#4
|
|
West Midlands
Join Date: Nov 2005
Location: Nuneaton (West Mids)
Posts: 13,835
Car(s): '64 Volvo V40 R’Design, '89 Ph1 309 GTi, ‘97 Mk1 S
|
Quote:
Originally Posted by J222JRA
Stickied. Thanks Willsy
|
Cheers James Just edited it to include coil pack cover parts too
|
|
|
|
|
The Following User Says Thank You to willsy For This Useful Post:
|
|
|
16th February 2010, 21:41
|
#5
|
|
Established Member
Join Date: Jan 2009
Location: Cardiff
Posts: 1,087
Car(s): 1.4 Red Westcoast
Mk2 Posi Blue VTS
|
£7 for the citroen badge!!! fcuk that haha
|
|
|
|
|
16th February 2010, 22:02
|
#6
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
nice one mate, thanks a lot.
|
|
|
|
|
16th February 2010, 22:02
|
#7
|
|
Saxperience Hardcore!
Join Date: May 2007
Posts: 16,839
Car(s): Saxo VTS, Westfield
|
Thanks for the edit Willsy....im now armed with a list of product numbers for my trip to citroen lol
|
|
|
|
|
16th February 2010, 23:12
|
#8
|
|
West Midlands
Join Date: Nov 2005
Location: Nuneaton (West Mids)
Posts: 13,835
Car(s): '64 Volvo V40 R’Design, '89 Ph1 309 GTi, ‘97 Mk1 S
|
lol no problem, happy to help
All of the above are the part numbers for Citroen.
If anyone has a Peugeot closer to them and would like the equivalent part numbers from Pug ill dig those out too, the covers themselves are identical part numbers, its just the odds and sods that vary
|
|
|
|
|
16th February 2010, 23:46
|
#9
|
|
Established Member
Join Date: Jan 2008
Location: Doncaster
Posts: 1,616
Car(s): Audi TTS
|
Two questions. The breather pipe, do I need to fit the JP4 one? As these have a breather hole on both the front and back cover?
Question two, the seal that comes with the covers, this is a tight seal/gasket between the cover and the head I take it, so no silicon is needed like on the orignal J4 head to cover?
Matt
|
|
|
|
|
16th February 2010, 23:56
|
#10
|
|
Established Member
Join Date: Dec 2006
Location: Fleetwood
Posts: 2,244
Car(s): 2002 Saxo VTS
|
yes you need the jp4 breather hose.
no you dont need silicon as the rubber seal(s) is way superior to the vts rocker cover seals.
|
|
|
|
|
17th February 2010, 00:08
|
#11
|
|
Established Member
Join Date: Jan 2008
Location: Doncaster
Posts: 1,616
Car(s): Audi TTS
|
Quote:
Originally Posted by johnnyg_vts
yes you need the jp4 breather hose.
no you dont need silicon as the rubber seal(s) is way superior to the vts rocker cover seals.
|

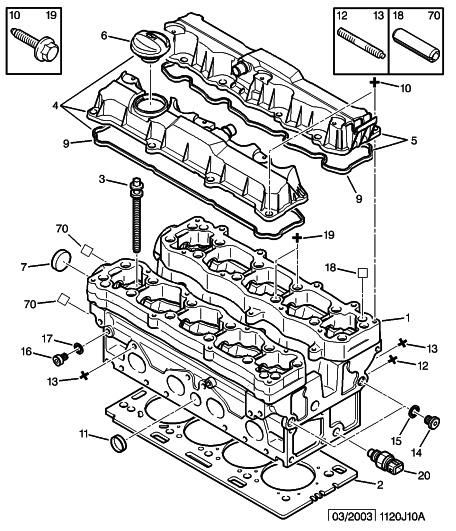

Grrr I got my cover today and didn't think to get the breather pipe. Only just thought bout it when looking at the diagram! Hopefully time to pick it up tomorrow!
Thank god for the seal cos wow I was having fun with the silicon stuff on my original covers!
£7 for the citroen badge has made me lol though. Great guide and thank you too Jonny!
|
|
|
|
|
17th February 2010, 08:19
|
#12
|
|
Saxperience Post Whore
Join Date: Mar 2007
Location: Reading
Posts: 8,980
Car(s): French tin can
|
Quote:
Originally Posted by Slugshead
£7 for the citroen badge!!! fcuk that haha
|
Rumour has it that the Peugeot badge is slightly more expensive...
__________________
Quote:
Originally Posted by FinchysSaxo
Some say hes the biggest drug dealer in Toadville!
|
Quote:
Originally Posted by sax-oli
and that his dealings even stretch as far as Brazil!
|
Quote:
Originally Posted by Colin
All we know is that he's called the Toad!
|
|
|
|
|
|
17th February 2010, 08:36
|
#13
|
|
Yorkshire
Join Date: Dec 2005
Location: West Yorkshire
Posts: 31,079
Car(s): 1989 Golf GTi Clipper
|
Other than the cosmetic benefit, is there any other advantage to fitting these over the standard vts ones?
__________________
Quote:
Originally Posted by matt_vtr_15a
I hear nottinghams nice....
|
Quote:
Originally Posted by jw1325
I heard a prick with a quiff stays there.
|
|
|
|
|
|
17th February 2010, 08:45
|
#14
|
|
Saxperience Hardcore!
Join Date: May 2007
Posts: 16,839
Car(s): Saxo VTS, Westfield
|
Quote:
Originally Posted by saxo180
Other than the cosmetic benefit, is there any other advantage to fitting these over the standard vts ones?
|
The seal is replaceable Craig so whem they are removed and re-fitted the dont leak
|
|
|
|
|
The Following User Says Thank You to J222JRA For This Useful Post:
|
|
|
17th February 2010, 10:08
|
#15
|
|
Established Member
Join Date: Jan 2008
Location: Doncaster
Posts: 1,616
Car(s): Audi TTS
|

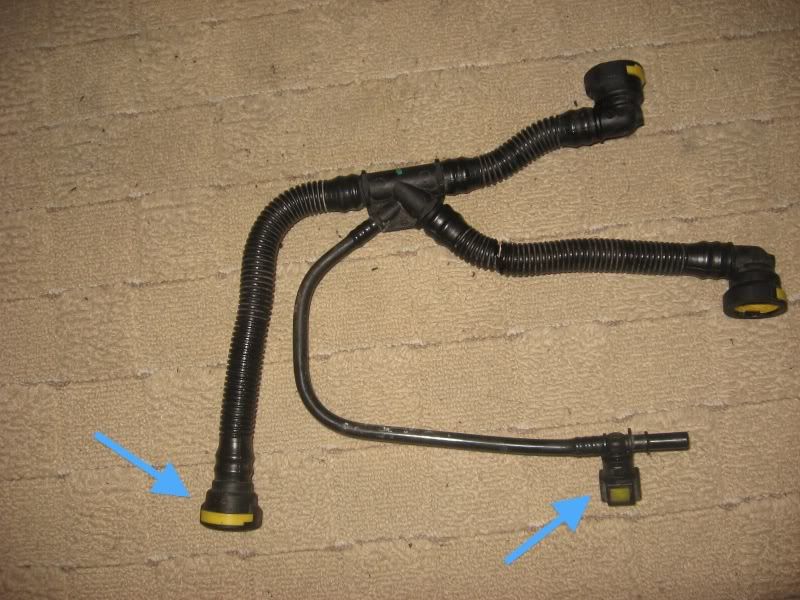

The breather pipe... On my car now is rubber pipe with citroens amazing version of a jublee clip, on the one I got with the covers its plastic with them clip on fittings. The clip on fitting are too big for my breather (Blue arrows) etc and only fit the cover. How do I get around this? I tried to bend my plastic pipe to get it close to where it needs to be and it broke
So now I've gotta go get another, but what's best way of fitting this?
Matt
Last edited by MJ05LLY; 17th February 2010 at 10:38.
|
|
|
|
|
17th February 2010, 14:17
|
#16
|
|
Established Member
Join Date: Jan 2008
Location: Doncaster
Posts: 1,616
Car(s): Audi TTS
|
Anyone
|
|
|
|
|
17th February 2010, 14:25
|
#17
|
|
Saxperience Addict
Join Date: Jul 2005
Location: Solihull / Bournemouth
Posts: 14,233
Car(s): 2015 Lapiz Blue Golf R
|
take both the breather pipes off (after the 'Y' piece)
And then replace them with some oil/fuel pipe and then some fuel pipe clamps or something along those lines.
Nothing to difficult about making them fit
|
|
|
|
|
The Following User Says Thank You to raunchz For This Useful Post:
|
|
|
19th February 2010, 15:36
|
#18
|
|
Infrequent Poster
Join Date: Oct 2009
Location: Wiltshire
Posts: 144
Car(s): Saxo VTS
|
Went to citroen today to find out they no longer do the replacement seal for the rocker cover. they said its gota use liquid seal now.
|
|
|
|
|
19th February 2010, 15:55
|
#19
|
|
Infrequent Poster
Join Date: Oct 2009
Location: Wiltshire
Posts: 144
Car(s): Saxo VTS
|
Just found out from my mate from citroen that its actuallt the c2 rocker seal which iv just relised from the title lol. But can you still use the same rubber sill from the jp4 c2 rocker to fit on the standard j4 VTS rocker cover
|
|
|
|
|
19th February 2010, 16:02
|
#20
|
|
Saxperience Post Whore
Join Date: Mar 2007
Location: Reading
Posts: 8,980
Car(s): French tin can
|
Using MJ's pic - thanks BTW  - I have the 2 pipes in the top right of the picure, leading to just one pipe. I have a blocker, so there's no 4th pipe. I want to buy some tubing to fit a proper catch tank, can anyone tell me what the correct tubing diameter is to fit over the centre piece / ditribution point showed in the middle of the pic?
