Bias valve setup query

[VeiRoN]

Hi there,I'm currently making the brake pipes from scratch and would like to know if the way of setting up the everything would be
adequate to use

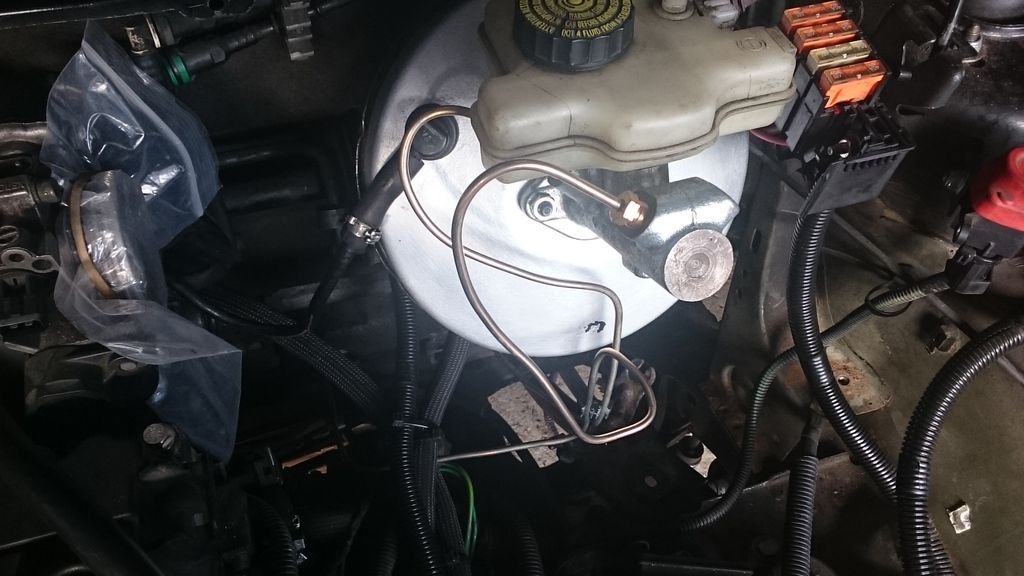

It's a 23.8mm ABS MC with 406 Brembo at the front and I'm using Kunifer pipe.
The line at the front of the mc goes to a T-piece fitted near the bulkhead in the engine bay,from here 2 lines goes to the two front calipers.
The rear port of the MC instead goes inside the cabin to the bias valve (lever type) fitted near the handbrake,from here it goes to a T-piece where the rear bench used to be and the 2 lines go to the rear calipers.

Thanks for the help.

[Kebabman]

That's the same pipe setup I have on mine and I haven't had any issues with it.

[VeiRoN]

Originally Posted by Kebabman

That's the same pipe setup I have on mine and I haven't had any issues with it.

Cheers,thank you.
