| Saxo Brakes / Suspension / Transmission / Tyres If you have queries or information to share regarding Saxo braking, suspension, tyres or transmission systems, please discuss this within this forum. |
 |
9th June 2014, 09:47
|
#1
|
|
Saxperience Forum Bum
Join Date: Mar 2009
Location: Morpeth
Posts: 2,539
Car(s): BMW 116d Regional Toner Sales Edition
|
266mm brake discs
How in fuckerys name do I work out what discs I need?
I've got a set of calipers from a breakers on eBay, they're 266mm calipers, that's literally all I know. I went and spoke to my local motor factor who said the fitment is different for different cars, ie the 206 HDi 1.6 and 1.9 both come with 266mm vented discs, but are different fitment, I'm assuming hub offset.
Someone help a brother out, I struggle to dress myself man.
|
|
|
|
9th June 2014, 10:10
|
#2
|
|
Saxperience Forum Bum
Join Date: Apr 2013
Location: Jarrow
Posts: 4,022
Car(s): 2003 Icelandic Grey 16v VTR
1991 Daihatsu GTti
|
Which callipers have you got? Post a pic, depending on the calliper you need a 34mm or 27mm offset. I've just been through the same ball ache.
Last edited by Mickswan; 9th June 2014 at 10:12.
|
|
|
|
|
9th June 2014, 10:16
|
#3
|
|
Saxperience Forum Bum
Join Date: Mar 2009
Location: Morpeth
Posts: 2,539
Car(s): BMW 116d Regional Toner Sales Edition
|
|
|
|
|
|
The Following User Says Thank You to D4MJT For This Useful Post:
|
|
|
9th June 2014, 10:17
|
#4
|
|
Saxperience Forum Bum
Join Date: Mar 2009
Location: Morpeth
Posts: 2,539
Car(s): BMW 116d Regional Toner Sales Edition
|
Quote:
Originally Posted by Mickswan
Which callipers have you got? Post a pic, depending on the calliper you need a 34mm or 27mm offset. I've just been through the same ball ache.
|
Fuck knows! I'm shit, I'll check them out tonight though against the guide posted below which will hopefully sort me out!
|
|
|
|
|
9th June 2014, 10:36
|
#5
|
|
Saxperience Forum Bum
Join Date: Apr 2013
Location: Jarrow
Posts: 4,022
Car(s): 2003 Icelandic Grey 16v VTR
1991 Daihatsu GTti
|
I'm assuming that you have Bosch ones, all it'll be is round or square pads.
|
|
|
|
|
9th June 2014, 10:38
|
#6
|
|
Saxperience Forum Bum
Join Date: Mar 2009
Location: Morpeth
Posts: 2,539
Car(s): BMW 116d Regional Toner Sales Edition
|
Quote:
Originally Posted by Mickswan
I'm assuming that you have Bosch ones, all it'll be is round or square pads.
|
Handily, I think they've got some pads in! So it'll be easy to check out!
|
|
|
|
|
9th June 2014, 10:40
|
#7
|
|
Established Member
Join Date: Aug 2012
Posts: 2,009
Car(s): Saxò VTS 16v
|
There should be printed on the caliper the brand,Bosh/Lucas etc,that way you'll know what discs you need.
|
|
|
|
|
12th June 2014, 09:04
|
#8
|
|
Saxperience Forum Bum
Join Date: Mar 2009
Location: Morpeth
Posts: 2,539
Car(s): BMW 116d Regional Toner Sales Edition
|
Righty, bit more assistance please.
I've established I have these calipers:
266mm BOSCH Caliper (Square Ended Pads) [Type 2]
266mm diameter
22mm thick
Vented disc, with a 34mm offset
5kg disc weight
54.0mm piston
~4.8kg caliper weight
14" Minimum Wheel Size [May catch on 14" wheels with inner balancing weights]
Does anyone know what model car they came as standard on so I can start getting discs ordered?
|
|
|
|
|
13th June 2014, 01:54
|
#9
|
|
Established Member
Join Date: Aug 2012
Posts: 2,009
Car(s): Saxò VTS 16v
|

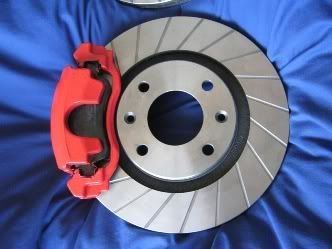

If they're the same as the ones i had they come off a C2 VTS,i had 266x22mm discs on my VTS too and used these discs with the bosh caliper which have this pad shape:
Last edited by VeiRoN; 13th June 2014 at 01:56.
|
|
|
|
|
13th June 2014, 03:50
|
#10
|
|
Saxperience Forum Bum
Join Date: Apr 2013
Location: Jarrow
Posts: 4,022
Car(s): 2003 Icelandic Grey 16v VTR
1991 Daihatsu GTti
|
Mine off a berlingo, sure muz has the same.
|
|
|
|
|
16th June 2014, 23:29
|
#11
|
|
Frequent Poster
Join Date: Dec 2002
Location: United Kingdom
Posts: 700
Car(s): Mk6 Golf GTD
Saxo VTS Project Rally Car
|
Take the pad and caliper down to your local motor factors. I had to try and find out what discs AND pads mine needed and they were most helpful at trying different stock off the shelf until we found the right combination.
__________________
Hill Climb / Rally Car Project Thread
Quote:
Originally Posted by Gandi699
Put a photo of yourself up so we can all recognise you when you are on police interceptors or traffic cops
|
|
|
|
|
|
17th June 2014, 00:06
|
#12
|
|
Saxperience Forum Bum
Join Date: Apr 2013
Location: Jarrow
Posts: 4,022
Car(s): 2003 Icelandic Grey 16v VTR
1991 Daihatsu GTti
|
What make are you after? I've got the part numbers for mintex handy I'm throwing them on my motor at the minute.
|
|
|
|
