Pipe?? Where Does It Go.....

[Spanky]

Hey guys!

Ive got some silicone hosing and a KnN filter im wanting to put on the car

I have just been out to see that it will all fit ok, now i no i will need a little filter for the oil breater.

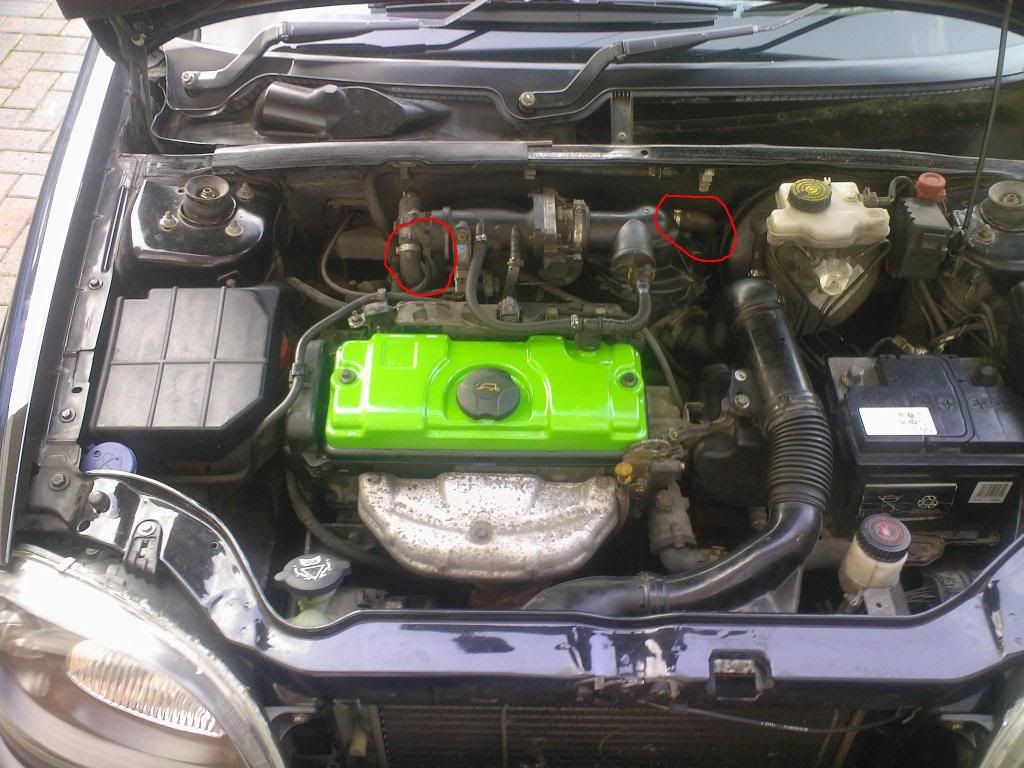

BUT im stumped at to what im supposed to do with this hose below



Obviously cant put it into the hosing, and i dont want to leave it just flapping around as its going into the TB and wil suck in dirty air

Anyone no what i would do here........

[Spanky]

Anyone>??

[baker556]

erm can you remove that whole sorta pipe on the left side of your red circle on the right of the picture then attach your silicone hose and filter to it

and with the other red circle on the left i think you can just wack a breather on their if you want to i dont think it is needed tho

[Spanky]

Anyone else???

I put the 2 red circles as thepipe is attached to the top of the standard air box (right hand circle) and i followed it round to behind the TB (left hand cirlce)

Anyone else confirm what i shud do with this??

Thanks

[Jack5639]

the one on ther right mite go to the brake servo??

[Spanky]

ok i just want to make somthing clear here lol

THE PIPE I HAVE CIRCLED BOTH TIMES GOES FROM THE TOP OF THE AIR BOX TO BEHIND THE THROTTLE BODY, HENCE WHY I HAVE CIRCLED IT TWICE

ITS ONE PIPE GOING FROM AIR BOX TO BEHIND TB

[GRAHAM2000VTR]

take the breathe pipe off fit your k and n filter then buy a small filter to put on the left hand circle if that makes sense

[frankie]

it comes from the ICV

and should idealy go back into the filter

or as graham set put a small filter init

ripspeed jobber for £8

[Spanky]

Thanks guys, i may now be buying a raceland lol

Is it the same if i do that yea ???

[frankie]

yea mate

[VTRelite]

get a pipercross vtr induction off rtec, i got one on my vtr and easy job to install, 5 minutes - max

[Spanky]

Originally Posted by VTRelite

get a pipercross vtr induction off rtec, i got one on my vtr and easy job to install, 5 minutes - max

Yea but they are no good lol

Suck hot air all day long

Thanks anyways mate

[blackie_2k5]

i had the same prob with filter, fitted the pipe onto the inlet pipe for my filter, its a vacuum pipe but i dont know what 4 lol

[vtsrich]

why not get a k a n panel filter souds the same

[blackie_2k5]

panel for the standard box is my next buy, the kit ive got on now is absolutetly sh*te, jus an open filter, its too big, sucks to much air and its hot air at tht lol

[Spanky]

well im now gettin a raceland, so ill have to now figure out where it goes on that ha!

[saxo88]

iv asked this ? b4... mine came with a k&n and the pipe is still connected to the left hand side but is blocked up and left dangeling on the right hand side
is this ok????
